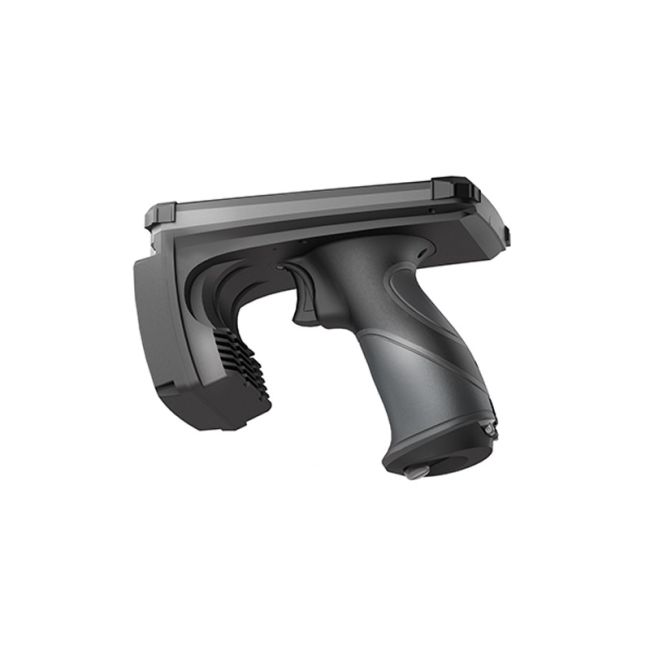

Orca 70 Android 14.0 Rugged Handheld Terminal with UHF RFID, 2D Scanner, WiFi & Bluetooth
The Orca 70 is a rugged, pistol-grip Android 14.0 handheld terminal built for high-performance data capture in demanding environments. Equipped with UHF RFID, 2D barcode scanner, WiFi, and Bluetooth, it delivers reliable and efficient mobile data collection for industries such as transportation, logistics, and warehousing.
With an IP64-rated durable design and 2-meter drop resistance, the Orca 70 withstands harsh conditions while ensuring consistent performance. Its ergonomic form factor and advanced scanning capabilities make it ideal for fast-paced workflows in inventory management, supply chain operations, and field services.
Rodinbell Orca 70 Android Handheld Terminal – Rugged, High-Performance Data Capture Solution
The Rodinbell Orca 70 is a powerful, next-generation industrial handheld terminal designed for demanding professional environments such as logistics, warehousing, retail, and inventory management. Powered by Android 14.0, it offers enhanced processing speed, stability, and security for real-time data collection and enterprise-level applications.
An upgrade over the Orca 50, the Orca 70 features a high-resolution capacitive touchscreen, advanced 2D barcode scanning, and integrated UHF RFID capabilities, enabling fast and accurate data capture. With IP64-rated protection, it is resistant to water, dust, and impact, making it ideal for tough field operations.
Built for reliability and ergonomic comfort, the Orca 70 includes WiFi, Bluetooth, and extended battery life to ensure continuous productivity throughout long shifts. Its rugged design and upgraded performance make it the perfect choice for organizations looking to optimize workflows and improve operational efficiency.
High Performance Computing Platform
Heavy-duty applications such as massive data collection, 3D real-time display can be operated smoothly.
Android 14.0The
Android 14.0 system is installed, optimised version is continuously updated.
Top Class Materials
CNC aluminum, nylon(Bayer), and 1.1mm thickness tempered glass offer excellent strength + heat dissipation + electromagnetic shielding. The soft material around the handle offers comfort.
Industrial Grade Components
Industrial and military-grade components ensure stability and endurance in harsh environments.
Ultra Long Operating Time
Pistol-style hot-swapping battery system makes backup battery more convenient to restore, so that the operating time is unlimited. A standard product package includes two 6,000mAh batteries.
High-End UHF RFID Engine
The M-2600 module, designed by RodinBell, is based on the Impinj Indy R2000 chip and offers the best performance and excellent multi-tag identification capabilities in the industry.
Outstanding Industrial Design
The idea was inspired by orca, and each single detail has been well refined. The appearance is compact, elegant, and balanced , which makes the product eye-catching and impressive.
Excellent Mechanical Protection
The safety drop height is 2m/6.56ft, IP64 protection grade can resist dust and splashes effectively
Mechanical Parameters
Materials CNC aluminum + nylon (Bayer)
Dimensions Profile 160*82*129mm
Grip 111*38*47mm
Weight 640g (including battery/standard version)
System Characteristics
Operating System: Android 14.0
CPU: Quad-core Cortex-A17 / 1.8GHz
GPU: ARM Mail- T764 / High performance 3D engine
RAM: 4G LPDDR3
ROM: 64G EMMC 5.0
LCD: 5.0 inches / 1280*720 / IPS / 180°view angle
Touch Screen: 1.1mm thickness tempered glass / 10-dot touch / can be operated with gloves
PSAM PSAM*1 / TI TCA5013(Optional)
Buttons
Power / Volume*2 3ALPS buttons / Operating force 2.2N / Operating life 600,000 cycles
Function keys 3ALPS buttons / Operating force 2.2N / Operating life 600,000 cycles
Scan Trigger OMRON button / Operating force 1.27N / Operating life 10,000,000 cycles
Power 6000mAh chargeable Li-polymer battery
Card Slots PSAM card slot*2
USB Interface Micro USB / MOLEX connector / Operating life 10,000 cycles
Audio Large speaker stereo system
Vibrator Button style/ 10mm diameter
Charge Indicator Bicolor LED
Wireless Communications
WiFi 2.4G/5G Dual Band
Bluetooth Bluetooth 5.0
Application Environment
Operating Temp -20°C -/+ 60°C
Storage Temp -40°C -/+ 70°C
Humidity 5%RH – 95%RH (Non-condensing)
Protection Grade IP64
Safety Drop Height 2m / 6.56ft
Data Collections
1D Barcode (Optional)
Engine Motorola EM1350
Support UPC/EA Symbol SE955N / Code128 / Code39 / Code93 / Code11/ Interleaved 2 of 5 / Discrete 2 of 5 / Chinese 2 of 5 / Codabar / MSI / RSS etc.
2D Barcode (Optional)
Engine Honeywell N3680
Support Data matrix / QR Code / PDF417 / US Planet / UK Postal etc.
UHF RFID
Engine RodinBell M-2600 module based on Impinj Indy R2000 chip
Buzzer 12*9.5mm / 2300 ± 300Hz
Protocol EPC Global UHF Class 1 Gen 2 / ISO 18000-6C / ISO 18000-6B
Work Frequency 840-960MHz
Output Power 0 – 33dBm
Peak Inventory Speed ＞500 tags/s
UHF Antenna 3dBi circularly polarized antenna
Read Distance 6 – 7m (Tested tag : Impinj E41b)
Camera( Optional) 13 megapixels / automatic focus / flashlight
| Products Model | Orca 70 Android 14.0, IP64 WiFi, BT, 2D barcode, UHF RFID terminal |
|---|---|
| Barcode scanner | 2D scanner |
| RFID reader | UHF RFID |
| Device type | Pistol grip |
| Operating system | Android |
| Manufacturer | Rodinbell |
