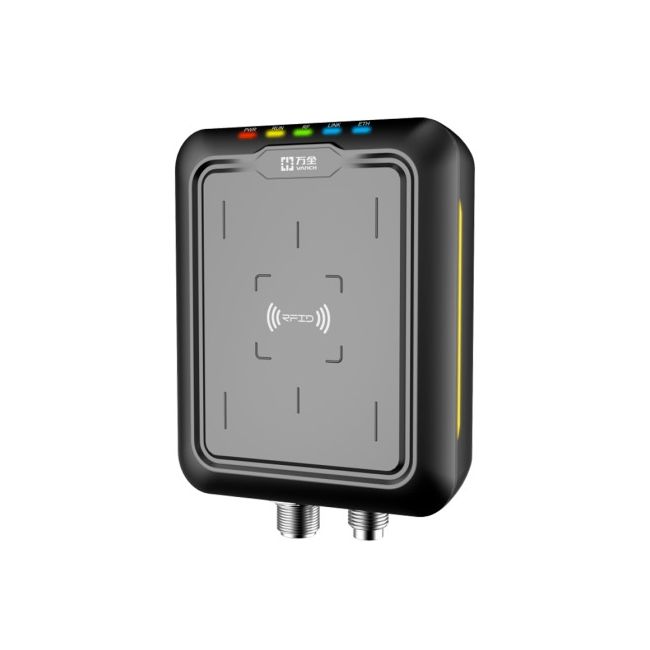

VI-IR108 UHF RFID Industrial reader
1. Industrial-grade design appearance patent, IP67 protection level, can adapt to harsh environments such as oil, dust, and humidity;
2. All industrial-grade electronic components are used, with built-in filters and isolation modules to resist interference, ensuring stable and reliable quality.
3. The RF module uses the outstanding American Impinj E310 chip, with extremely high sensitivity and a higher reading rate;
4. Multi-protocol, multi-interface, multi-cascade, multi-mode, and multi-function;
5. Modbus directly connects to the PLC to achieve rapid RFID acquisition; supports low-threshold secondary development.
Application Scenario
Vanch brand industrial RFID identification products are widely used in automobile manufacturing, photovoltaic lithium batteries, equipment manufacturing, logistics sorting, workstation assembly lines, home appliance/3C mixed production lines, tool management, AGV robot control, and other scenarios.
Performance
RF module
VM-18E/VM-M18 (RF chip E310 or Fudan Micro)
Air interface protocol
RAIN RFID / Complies with ISO 18000-6C and EPC Global Gen2v2 regulations
Frequency range
902~928MHz or 865~868MHz
RF output power
0~27dBm±1dBm
Receiver sensitivity
-75 dBm
Output power
0-26dBm
Maximum read rate (tag/second)
250
Read distance
0~35cm
Write distance
0~35cm
Number of antennas
1 built-in ceramic antenna
Firmware upgrade
Scalable upgrade mechanism
Application software interface
Provide API development kit and C and Java application routines
Communication interface
RS232, RS485, RJ45 three options
Communication rate
Serial port rate 9600~115200bps Network port rate 10/100Mbps
Communication protocol
Modbus TCP/RTU, VUP protocol
Signal indicator
Power indicator PWR (red), Operation indicator RUN (orange), Card reading indicator RF (green,) Network connection data transmission indicator Link (blue), Serial port connection data transmission indicator ETH (blue), Side light bar (card reading flashes green, standby red)
Protection level
IP67
Typical power consumption (watts)
＜4.5W
Working voltage
DC 9~24V or POE power supply
Working status display mode
LED indicator
GPIO
1 trigger, 1 relay
Product size
100*80*35mm
Shell material
ABS+epoxy resin
Mounting bracket material
Iron galvanized or powder spraying process
Weight (kg)
Product net weight 205g; including packaging 360g
Wire harness connector
M12-A type 8-pin female (network port/RS232), M12-A type 5-pin female (RS485)
| Products Model | VI-IR108 UHF RFID Industrial reader |
|---|---|
| RFID reader | UHF RFID |
| Manufacturer | Vanch |
