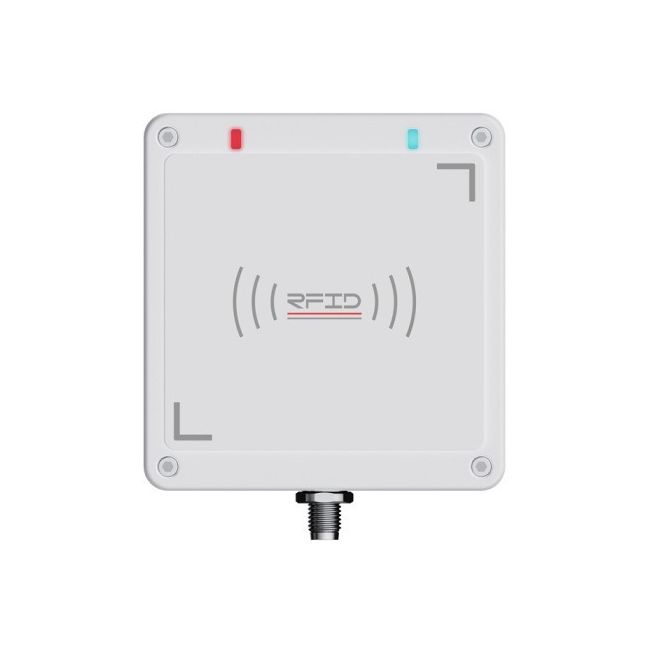

VI-IRQ610 UHF RFID industrial reader small all-in-one machine
1. Physical advantages: IP67 protection level, can be used in various harsh environments;
2. Electrical performance advantages: small size, high gain, wide application scenarios;
3. Applicable scenarios: suitable for 902-928MHz frequency band passive integrated reader/writer system; can be easily applied to Modbus industrial production lines, access control, logistics management and other UHF frequency band RFID occasions.
Application Scenario
Applicable to 902-928MHz frequency band passive integrated reader/writer system; can be conveniently used in UHF frequency band RFID occasions such as Modbus industrial production line, access control, logistics management, etc.
SPECIFICATIONS
Performance Characteristics
Frequency
865Mhz – 868MHz, 902 -928MHz
Frequency modulation
FHSS or fixed-frequency, can be set by software
RF output
10-30dBm customized；50 ohm load.
Read tag peak speed
> 700 piece/second
Tag Cache area
800 tags @ 96 bit EPC
Antenna connection protection
support <15W
The number of antennas
16 SMA antenna interface can be chosen
communication interface
10M/100MAdaptive Ethernet、RS232、RS485
Communication rate
Serial rate 9600～115200bps，RJ45 is 10Mbps
Operation performance
reading range
9dbi antenna configuration, through the RF power adjustment, the typical reading distance of 3-15 meters range reference (depending on tag performance)
Protocol
EPC global UHF Class 1 Gen 2 / ISO 18000-6C/ ISO18000-6B
Maximum receiving sensitivity
-82dBm; Maximum return loss: 10dBm
Dimension
215(L)*185 (W)*34(H)mm
Power Supply
With 220V AC input, the output of +12 V/3A DC power converter
Power Consumption
Less than or equal to 15W
RF output interface
SMA connector
Operating Temp
-20 ºC to +70ºC
