ATID ATS200 UHF RFID reader, Bluetooth, Pistol Grip Handle and Cradle
– UHF EPC Gen2, ISO / IEC 18000-6C
– BT V2.1 + EDR / BLE V4.1
– Compatible with Windows, Android & iOS Host
– Ergonomic Design
– Support Linear Antenna (Optional)
– Dropspec 1.5m (5ft)
– IP65
ATID ATS200 UHF RFID reader, Bluetooth, Pistol Grip Handle and Cradle

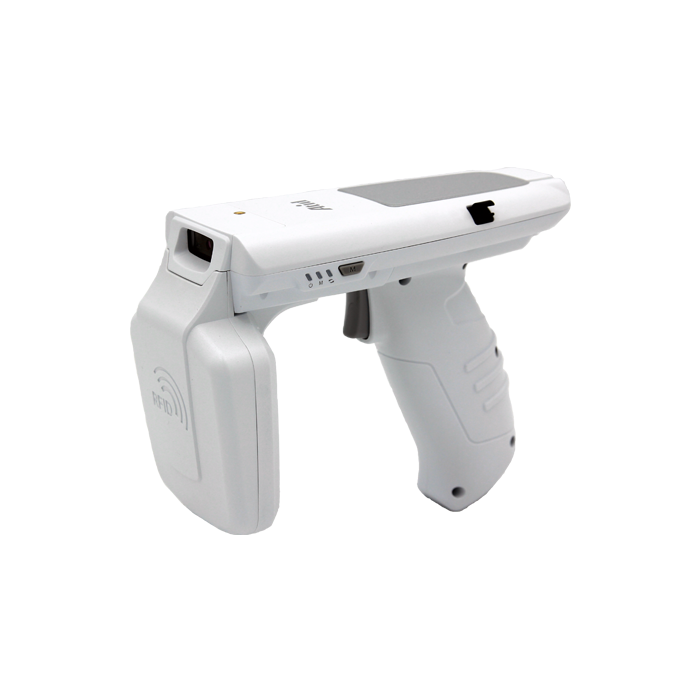

The ATS200 is a pistol grip gun-type UHF RFID reader that supports Windows, Android and iOS (BLE only) handheld devices enabling users to reader and write RFID tags within retail or warehousing enviroments. The device will will support all common smartphones by mounting the devices on the upper part of the scanner using double sided M3 sticky pads.
Highlights:
– UHF EPC Gen2, ISO / IEC 18000-6C
– BT V2.1 + EDR / BLE V4.1
– Compatible with Windows, Android & iOS Host
– Ergonomic Design
– Support Linear Antenna (Optional)
– Dropspec 1.5m (5ft)
– IP65
Specifications:
| PERFORMANCE CHARACTERISTICS | |
| Processor | ARM7 Core |
| Supported Platforms | Windows, Android, iOS (BLE Only) |
| PHYSICAL CHARACTERISTICS | |
| Dimensions (W x L x H) |
76.1 x 173.7 x 132 mm |
| Weight | 420g (with Battery) |
| Power | 5,200mAh Li-ion Battery |
| USB Interface | 1 USB Port / USB Type-C |
| Notification | LED Indication, Buzzer, Vibrator |
| DATA CAPTURE | |
| RFID (UHF) | Protocol : EPC GEN2, ISO/IEC 18000-6C Reading Range : ~6m (Depending on environment and tag type) Writing Range : ~0.5m (Depending on environment and tag type) RF Output : 1W (30dBm, MAX) Antenna : Circular Antenna (1 dBi) / Linear Antenna (4 dBi / Optional)
Support Frequency (Optional) |
| WIRELESS COMMUNICATION | |
| Bluetooth | BT V2.1 + EDR / BLE V4.1 |
| USER ENVIRONMENT | |
| Operating temperature | -20℃ to 50℃ |
| Storage temperature | -30℃ to 70℃ |
| Humidity | 5~95% (non – condensing) |
| Drop Specification | 1.5m |
| Dust & Water Proof | IP65 |
Accessories:
 |
Cradle Products for charging |
|
GUN Handle Convenient to use a product such as a gun / Charging Independently |
|
Adaptor Support 5V/3A |
|
Host USB Cable USB Type-C to Type-C / Host device connection |
|
USB Cable USB Type-C / 1.5m |
|
Double-Sided Tape Using for fixing host device on the top |
|
Hand Strap |
| Products Model | ATID ATS200 UHF RFID reader, Bluetooth, Pistol Grip Handle and Cradle |
|---|---|
| RFID reader | UHF RFID |
| Device type | Pistol grip |
| Manufacturer | ATID |
