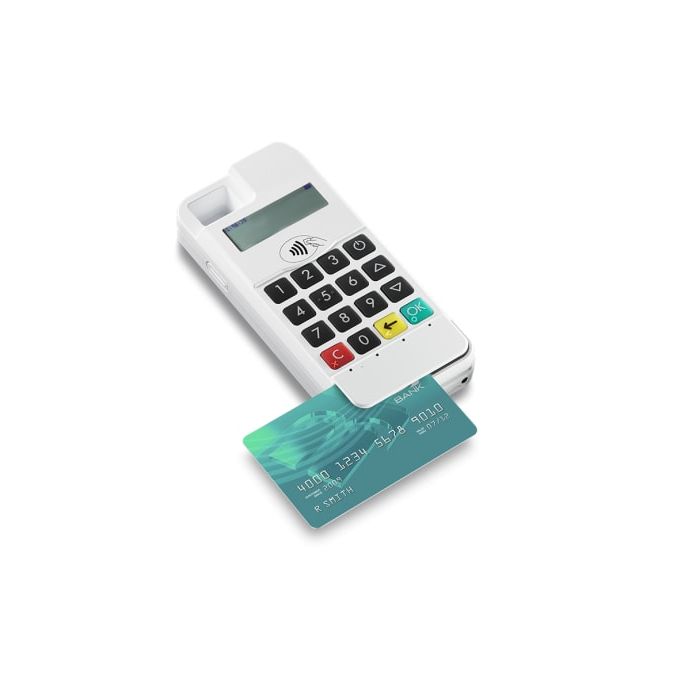

BluePad-500 + 2D Barcode Scanner + Mag Stripe + Smart Card

Universal Mobile Payment Solution, accepts all forms of payment: EMV Chip&PIN and magnetic stripe cards.

Highest Quality Standard meets the latest EMV and PCI PTS 3.x specifications for encrypting PIN-entry devices.

Functions:

Keypad
• ON / OFF key
• 10 numeric keys
• 5 functional keys

Supported Barcode Types
• 1D Barcode Scanner Supported Symbologies: Code128, UCC/EAN-128, AIM 128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-14, Matrix 2 of 5, Industrial 25, Standard 25, Code39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, GS1-DataBarTM(RSS) (RSS-14, RSS-Limited, RSS-Expand)
• 2D Imager Supported Symbologies: PDF417, QR Code(QR1, QR2, Micro QR),Data Matrix (ECC200, ECC000, 050, 080, 100, 140)

Connectivity
• Apple 9 pin connector
• Pass-through sync through mini USB

Technical Specifications:

• Processor: MAXIM USIP Professional, version
  IC400C
• Application Memory: 8 MB application accessible
   flash
• Display: LCD, monochrome, 128 x 32
• Smart Card Reader: ISO7816, EMV L1 certified
• Device compatibility: Apple iPhone 5C / iPhone 5S
• LED indication: 4 LEDs for transaction and device
   status
• Audio indication: Electro-Magnetic Buzzer
• Buttons: 1 scan button

Memory
• 128KB of SRAM
• 256KB Lockable Flash Memory
• 128KB of ROM

Magnetic Card Reader
• 3-track bi-directional reading
• ISO 7810, 7811 and 7813

Reliability
• 500 000 chip card cycles
• 1 000 000 magnetic card swipes
• 1 000 000 single button clicks

Environmental
• Operating: -10°C to +40°C / 5% to 90% RH
• Storage: -20°C to +50°C / 5% to 90% RH

Power Supply
• 5V through mini USB
• 5V through single or 5 station charger

Accessories / Options:

Contactless Card Reader for payment applications (option)
• AMEX ExpressPay MagStripe and EMV
• Discover ZIP and D-PAS
• MasterCard PayPass MagStripe and M/Chip
• VISA PayWave MSD and qVSDC

• Barcode Reader(option): Newland EM3080 - Image
  Sensor 640×480 CMOS CMOS, High Performance 2D
  Imager Scan Engine

Accessories
• Single station charger - SC-1
• 5 stations charger - GC-5

Size/Weight/Power:

• W x L x H - 68 x 145 x 27 mm (2.7 x 5.7 x 1.1 inch)
• Weight - 160 gr.
• Power - Rechargeable Li-Ion battery 3.7 V / 1300
   mAh
