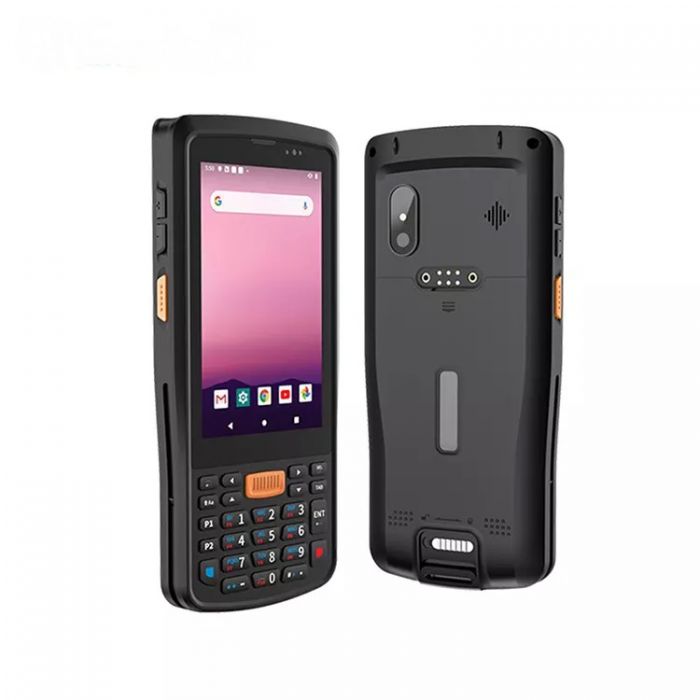

Emdoor EM-T04 4" screen 4G LTE/WiFi, Android 11, 4GB+64GB, Built-In GPS, 2D barcode scanner Rugged PDA
Emdoor EM-T04 4" screen 4G LTE/WiFi, Android 11, 4GB+64GB, Built-In GPS, 2D barcode scanner Rugged PDA
| Basic parameters | |
| Dimension | 162.4 X 72.8 X 19.4mm |
| Weight | 250g |
| Device Color | black |
| LCD | 4 inch IPS 1 6:9, 480x800, 300nits |
| Touch Panel | 5 point G+FF capacitive touch screen Corning ® Gorilla ® Glass |
| Camera | Rear 13.0MP |

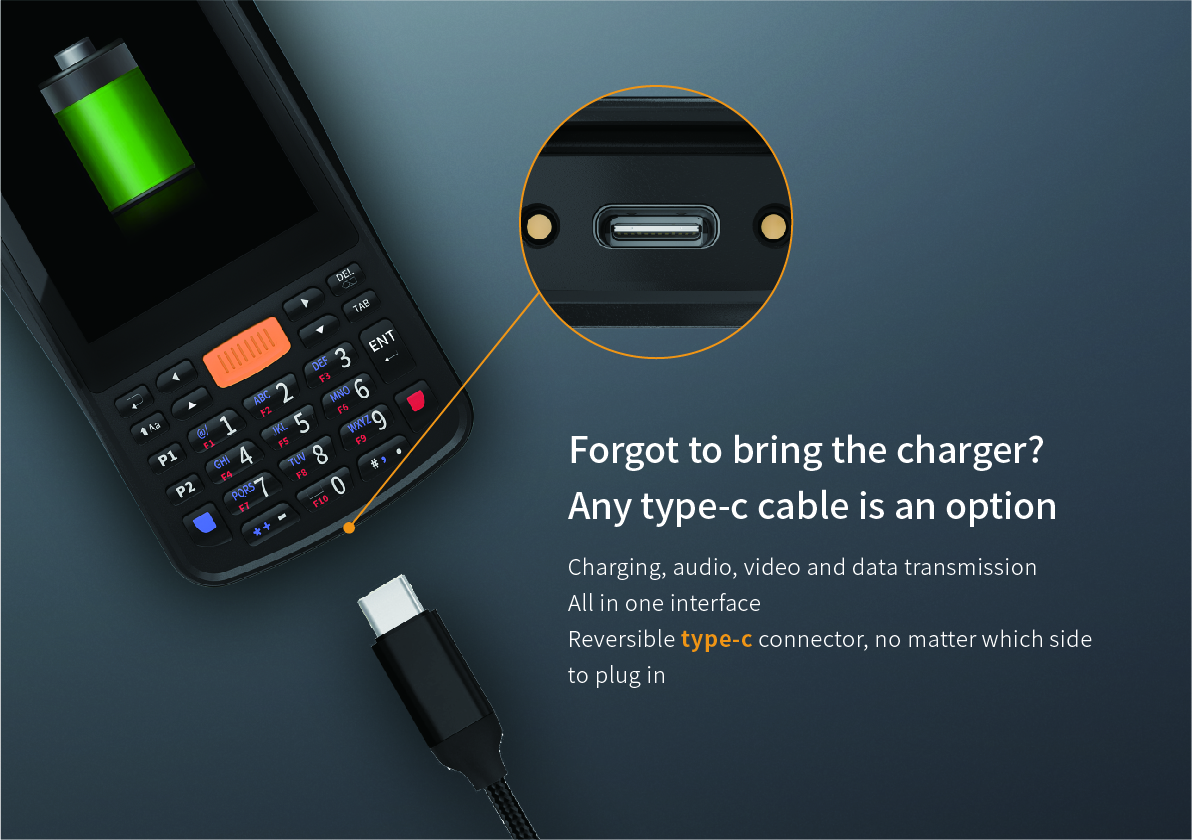

| 1/0 | USB Type-Cx 1, |
| TFCardx1max:128G,SIMCardx1 | |
| (Two out of three card holder), | |
| 6Pin back shell x 1, 2Pin machine buttom x 1 | |
| Power | AC100V ~ 240V, 50Hz/60Hz, Output DC 5V/2A |
| Performance parameter | |
| CPU | MTK OCTA Core |
| OS | Android 11 |
| RAM | 4GB |
| ROM | 64GB |
| Battery | |
| Capacity | 3.8V/4500mAh |
| Type | External removable lithium ion battery |
| Endurance | 7hrs (default 50% volumn, default 200 lumens brightness，play1 080P video) |
| Communication | |
| WIFI | WiFi 802.11 a/b/g/n/ac (2.4G+5G) |
| 4G (Optional) | GSM B2/B3/B5/B8 |
| WCDMA B1/B2/B5/B8 | |
| TDS B34/B39 | |
| FDD B1/B2/B3/B4/B5/B7/B8/B13/B17/B20/B28AB | |
| TDD B38/B39/B40/B41 | |
| GNSS | Built-in GPS, Glonass, beidou(G+G+B) |
| Reliability | |
| Operate Temperature | -10°C~ 55 °C |
| Store Temperature | -20 °C~60 °C |
| Humidity | 95% Non-Condensing |
| Rugged Feature | IP65 certifed, MIL- STD-810G certifed |
| Drop Height | 1.2m |
| Data Collection | |
| NFC | Built-in, 13.56MHz, ISO/IEC 14443A/B,ISO/IEC 15693, ISO/IEC 18092 |
| 2D | Optional, EM80, 4710, EM03 |
