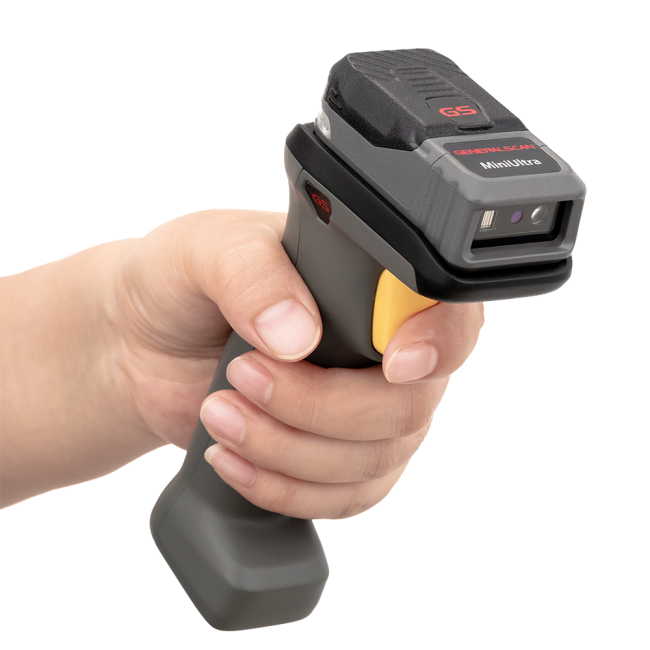

Generalscan GS R5521 2D imager Scan Engine Flexgrip-Wireless Barcode Scanner SE4770/ 600mAh Battery *2
$551.42 $459.52
In stock
SKU
R5521-R06+GHR201-S
Generalscan GS R5521 2D imager Scan Engine Flexgrip-Wireless Barcode Scanner SE4770/ 600mAh Battery *2
Generalscan GS R5521 2D imager Scan Engine Flexgrip-Wireless Barcode Scanner SE4770/ 600mAh Battery *2
R552X Flexgrip Scanner Series
With Dual-core Hardware PL5000 Decoder, it can decode in record time, even on damaged, poorly printed and low contrast barcodes or in poor lighting condition
The PL5000 hardware decoder boosts worker productivity with unmatched decode times, superior motion tolerance, plus advanced barcode and data capture processing features, plus support for the newest barcode symbologies.
Generalscan Flexgrip adapts for maximum user preference and comfort
Flexgrip permits scanners to switch freely among different wearing styles, allowing users to choose the most traditional and convenient option for their specific needs, reducing fatigue, increasing comfort, especially during long shifts.
Flexgrip permits scanners to switch freely among different wearing styles, allowing users to choose the most traditional and convenient option for their specific needs, reducing fatigue, increasing comfort, especially during long shifts.
Whether the barcode is in hand or over 40ft./12.2m away, R5524 can capture it!
R5524 features a green laser aimer that’s up to 7x more visible than red, even in bright sunlight, and Zebra’s PRZM Intelligent Imaging Technology to deliver first-time-every, time decoding. With adjustable illumination and intelligent autofocus, users do not have to sacrifice scanning speed for working range.
R5524 features a green laser aimer that’s up to 7x more visible than red, even in bright sunlight, and Zebra’s PRZM Intelligent Imaging Technology to deliver first-time-every, time decoding. With adjustable illumination and intelligent autofocus, users do not have to sacrifice scanning speed for working range.
Ease of Transition among Tasks and Good for Sharing Use
Workers can easily switch between different wearing styles as they move between different tasks, offering flexibility and time efficiency. In environments where scanners are shared among employees, the ability to change wearing styles can be advantageous for hygiene and personal preference.
Workers can easily switch between different wearing styles as they move between different tasks, offering flexibility and time efficiency. In environments where scanners are shared among employees, the ability to change wearing styles can be advantageous for hygiene and personal preference.
Specifications for R552X Flexgrip Scanner Series
|
|
R5520 Flexgrip Barcode Scanner |
R5521 Flexgrip Barcode Scanner |
R5522 Flexgrip Barcode Scanner |
R5523 Flexgrip Barcode Scanner |
R5524 Flexgrip Barcode Scanner |
|
Dimension |
70.0mm(L)×36.0mm(W)×26.8mm(D) |
70.0mm(L)×36.0mm(W)×26.8mm(D) |
70.0mm(L)×36.0mm(W)×26.8mm(D) |
70.0mm(L)×36.0mm(W)×26.8mm(D) |
70.0mm(L)×36.0mm(W)×26.8mm(D) |
|
Battery Capacity |
600mAh |
600mAh |
600mAh |
600mAh |
600mAh |
|
Weight |
37g(Scanner body) |
37g(Scanner body) |
40.7g(Scanner body) |
38.7g(Scanner body) |
37.5g(Scanner body) |
|
Engine |
Zebra SE4710 |
Zebra SE4770 |
SE4750MR |
Honeywell N6803 |
Zebra SE55 |
|
Sensor |
2D CMOS Image |
2D CMOS Image |
2D CMOS Image |
2D CMOS Image |
2D CMOS Image |
|
Skew, Pitch & Roll |
Skew tolerance: ±60° from normal Pitch tolerance: ±60° from normal Roll tolerance: 360° from normal |
Skew tolerance: ±60° from normal Pitch tolerance: ±60° from normal Roll tolerance: 360° from normal |
Skew tolerance: ±60° from normal Pitch tolerance: ±60° from normal Roll tolerance: 360° from normal |
Skew tolerance: ±60° from normal Pitch tolerance: ±60° from normal Roll tolerance: 360° from normal |
Skew tolerance: ±60° from normal Pitch tolerance: ±60° from normal Roll tolerance: 360° from normal |
|
Field of view |
Horizontal 42°, Vertical 28° |
Horizontal 48°, Vertical 30° |
Horizontal 31°, Vertical 23° |
Near: Horizontal 48°, Vertical 21° Far: Horizontal 20°, Vertical 12° |
Horizontal 37°, Vertical 21.4° |
|
Charging Time |
120min |
120min |
120min |
120min |
120min |
|
Battery Life |
10.25h(scan every 5 seconds) |
9.93h(scan every 5 seconds) |
9h(scan every 5 seconds) |
8h(scan every 5 seconds) |
6.9h(scan every 5 seconds, 10cm reading) 4h(scan every 5 seconds, 1m reading) |
|
Bluetooth Profiles |
HID Keyboard, SPP, and Bluetooth low energy(BLE) |
HID Keyboard, SPP, and Bluetooth low energy(BLE) |
HID Keyboard, SPP, and Bluetooth low energy(BLE) |
HID Keyboard, SPP, and Bluetooth low energy(BLE) |
HID Keyboard, SPP, and Bluetooth low energy(BLE) |
|
USB Interface |
USB Type-C |
USB Type-C |
USB Type-C |
USB Type-C |
USB Type-C |
|
USB Profiles |
USB HID Keyboard, USB VCP (Virtual Serial Port) |
USB HID Keyboard, USB VCP (Virtual Serial Port) |
USB HID Keyboard, USB VCP (Virtual Serial Port) |
USB HID Keyboard, USB VCP (Virtual Serial Port) |
USB HID Keyboard, USB VCP (Virtual Serial Port) |
|
Drop Spec. |
Multiple 4.9ft./1.5m drops to concrete |
Multiple 4.9ft./1.5m drops to concrete |
Multiple 4.9ft./1.5m drops to concrete |
Multiple 4.9ft./1.5m drops to concrete |
Multiple 4.9ft./1.5m drops to concrete |
|
Tumble Spec. |
Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute. |
Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute. |
Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute. |
Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute. |
Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute. |
|
Electrostatic Discharge (ESD) |
±8kVdc contact discharge; ±15kVdc air discharge |
±8kVdc contact discharge; ±15kVdc air discharge |
±8kVdc contact discharge; ±15kVdc air discharge |
±8kVdc contact discharge; ±15kVdc air discharge |
±8kVdc contact discharge; ±15kVdc air discharge |
|
Certification |
CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC |
CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC |
CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC |
CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC |
CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC |
|
Decode Range |
4mil Code 39 84.0-114.0MM 5mil Code 128 71.0-108.0MM 5mil Code 39 50.8-343.0MM 5mil PDF417 79.0-213.0MM 10mil DataMatrix 74.0-257.0MM 100%UPC-A 46.0-660.0MM 20mil Code39 50.8-762.0MM |
3mil Code 39 76.0-147.0MM 5mil Code 128 58.0-249.0MM 5mil PDF417 76.0-201.0MM 6.67mil PDF417 64.0-257.0MM 10mil DataMatrix 53.0-279.0MM 100%UPC-A 41.0-632.0MM 15mil Code 128 61.0-706.0MM 20mil Code 39 41.0-917.0MM |
5mil Code 128 188.0-406.0MM 5mil PDF417 206.0-333.0MM 7.5mil DataMatrix 211.0-325.0MM 10mil DataMatrix 178.0-432.0MM 13mil UPC-A 58.0-965.0MM 15mil Code 128 102.0-1016.0MM 20mil Code 39 53.0-1372.0MM 100mil Code 39 279.0-4369.0MM 160mil DataMatrix 292.0-3505.0MM 20mil QR Code 71.0-676.0MM |
5mil Code 39 137 - 396MM 7mil PDF 137 - 415MM 10mil Code 128 90 - 1399MM 10mil QR Code 128 - 412MM 13mil UPC 68 - 1690MM 20mil Code 88 - 2848MM 55mil Code 39 ---- - 5912MM 100mil Code39 ---- - 9849MM |
3mil Code 39 69.0-411.0MM 5mil Code 39 64.0-676.0MM 5mil PDF417 71.0-498.0MM 6.7mil PDF417 66.0-650.0MM 10mil DataMatrix 56.0-688.0MM 100%UPC-A(13mil) 64.0-1800.0MM 15mil Code 128 65.0-2400.0MM 20mil Code 39 100.0-3300.0MM 55mil Code 39 215.0-3900.0MM 100mil Code 39 410.0-4200.0MM 100mil DataMatrix 85.0-7200.0MM |
| Products Model | Generalscan GS R5521 2D imager Scan Engine Flexgrip-Wireless Barcode Scanner SE4770/ 600mAh Battery *2 |
|---|---|
| Barcode scanner | 2D scanner |
| Manufacturer | Generalscan |
