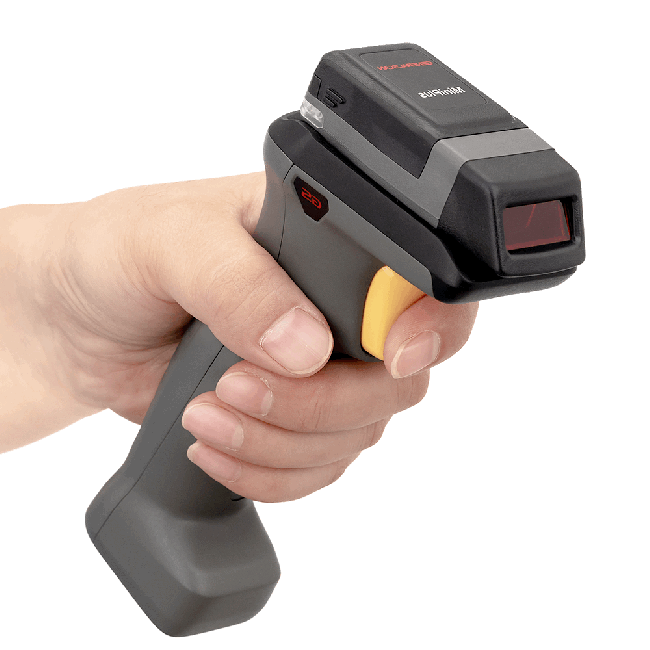

Generalscan GS R1120 1D Laser Scan Engine Wireless Flexgrip Barcode Scanner SE965/ 600mAh Battery *1
Benefit Zebra Adaptive Scanning Technology, aggressive scanning performance and a wide working range work hand-in-hand to enable the rapid and accurate scanning of bar codes, improved productivity.
Workers enjoy first time every time dependable scanning on any 1D bar code, regardless of lighting conditions.
Specifications for R1120 Flexgrip Scanner
|
|
R1120 Flexgrip Barcode Scanner |
|
Dimension |
75.1mm(L)×34.7mm(W)×25.2mm(D) |
|
Battery Capacity |
600mAh |
|
Engine |
Zebra SE965HP |
|
Weight |
33g(Scanner body) |
|
Sensor |
Laser |
|
Skew, Pitch & Roll |
Skew tolerance: ±40° from normal Pitch tolerance: ±65° from normal Roll tolerance: ±35° from vertical |
|
Field of view |
47° Wide, 10° Medium, 10° Narrow |
|
Charging Time |
120min |
|
Battery Life |
15.4h (scan every 5 seconds) |
|
Bluetooth Profiles |
HID Keyboard, SPP and Bluetooth low energy (BLE) |
|
USB Interface |
USB Type-C |
|
USB Profiles |
USB HID Keyboard, USB VCP (Virtual Serial Port) |
|
Drop Spec. |
Multiple 4.9ft./1.5m drops to concrete |
|
Tumble Spec. |
Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute. |
|
Electrostatic Discharge (ESD) |
±8kVdc contact discharge; ±15kVdc air discharge |
|
Certification |
CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC |
|
Decode Range |
5mil Code128 30.5-195.6MM 5mil Code39 30.5-317.5MM 7.5mil Code39 27.9-469.9MM 10mil Code128 30.5-482.6MM 100% UPCA 40.6-685.8MM 15mil Code128 25.4-749.3MM 20mil Code39 35.6-1320.8MM 55mil Code39 86.4-2540MM 100mil Code39 609.9-5181.6MM |
| Products Model | Generalscan GS R1120 1D Laser Scan Engine Wireless Flexgrip Barcode Scanner SE965/ 600mAh Battery *1 |
|---|---|
| Barcode scanner | 1D scanner |
| Manufacturer | Generalscan |
