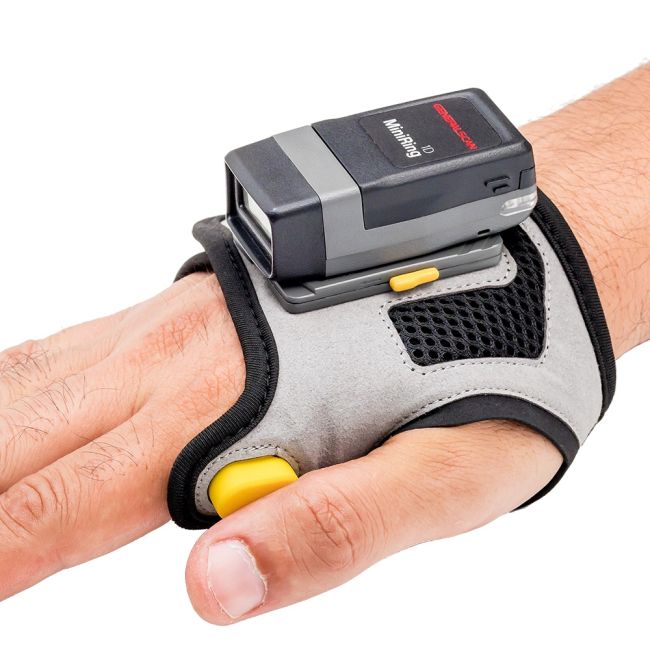

Generalscan R1521 Ruglove 2D imager Scan Engine glove Barcode Scanner GEA201/ 600mAh battery *1
$357.24 $297.70
In stock
SKU
R1521-R08+GGR203-01
Generalscan Ruglove R1521 2D imager Scan Engine glove Barcode Scanner GEA201/ 600mAh battery *1
R152X Glove Scanner Series
Dedicated design with efficient power management to provide extended working hours to 18 hours
Incorporate features like low-energy Bluetooth technology, optimized power consumption, and 600maH long-lasting batteries, which ensures prolonged usage between charges, making scanner suitable for demanding environments where continuous scanning is required throughout the day.
Breathable fabric prevents the hand from getting too warm or sweaty
To reduce fatigue, we dedicate select lightweight breathable fabric materials, which ensures that wearing the scanner for long periods doesn’t cause discomfort or strain on the hand and wrist.
Ease of Putting On and Taking Off
Generalscan Ruglove scanner is designed for ease of use, meaning it can be easily put on and taken off. This is particularly important in jobs where users may need to frequently remove the scanner for breaks or other tasks. Flexibility is key in a glove scanner design. Generalscan Ruglove scanner allows for the natural movement of fingers and the hand, enabling the user to perform tasks without restriction or discomfort.
Specifications for R152X Ruglove Scanner Series
|
R1521 Ruglove Barcode Scanner |
R1522 Ruglove Barcode Scanner |
|
|
Dimension |
66.54mm(L)×34.73mm(W)×25.16mm(D) |
66.54mm(L)×34.73mm(W)×25.16mm(D) |
|
Battery Capacity |
Standard battery: 400mAh Extended battery: 600mAh |
Standard battery: 400mAh Extended battery: 600mAh |
|
Weight |
25.8g(Scanner body) |
28.3g(Scanner body) |
|
Engine |
GS GEA 101 |
Honeywell N4680 |
|
Sensor |
2D CMOS Image |
2D CMOS Image |
|
Skew, Pitch & Roll |
Skew tolerance: ±55° from normal Pitch tolerance: ±55° from normal Roll tolerance: 360° from normal |
Skew tolerance: ±50° from normal Pitch tolerance: ±50° from normal Roll tolerance: 360° from normal |
|
Field of view |
Horizontal:±43°；Vertical:±32° |
Horizontal:±20°；Vertical:±15° |
|
Charging Time |
400mAh, 80min 600mAh, 100min |
400mAh, 80min 600mAh, 100min |
|
Battery Life |
400mAh, 12h(scan every 5 seconds) 600mAh, 18h(scan every 5 seconds) |
400mAh, 8.5h(scan every 5 seconds) 600mAh, 12.8h(scan every 5 seconds) |
|
Glove Type |
Ruglove-Lycra: one-size-fits-all(adjustable) Ruglove-Silicone: one-size-fits-all(adjustable) Ruglove-MK2(Microfiber): Small(S) Medium(M) Large(L) |
Ruglove-Lycra: one-size-fits-all(adjustable) Ruglove-Silicone: one-size-fits-all(adjustable) Ruglove-MK2(Microfiber): Small(S) Medium(M) Large(L) |
|
Bluetooth Profiles |
HID Keyboard, SPP, and Bluetooth low energy(BLE) |
HID Keyboard, SPP, and Bluetooth low energy(BLE) |
|
USB Interface |
USB Type-C |
USB Type-C |
|
USB Profiles |
USB HID Keyboard, USB VCP (Virtual Serial Port) |
USB HID Keyboard, USB VCP (Virtual Serial Port) |
|
Drop Spec. |
Multiple 4.9ft./1.5m drops to concrete |
Multiple 4.9ft./1.5m drops to concrete |
|
Tumble Spec. |
Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute. |
Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute. |
|
Electrostatic Discharge (ESD) |
±8kVdc contact discharge; ±15kVdc air discharge |
±8kVdc contact discharge; ±15kVdc air discharge |
|
Certification |
CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC |
CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC |
|
Decode Range |
13mil EAN-13 50-325mm 5mil Code39 55-135mm 13mil Code128 50-330mm 15mil QR 30-190mm 10mil Data Matrix 40-130mm 6.67mil PDF417 50-135mm |
5mil Code39 45-180mm 10mil Code39 36-360mm 20mil Code39 71-747mm 5mil Code128 56-158mm 10mil Code128 33-321mm 20mil Code128 53-598mm 100% UPCA 46-390mm 7mil PDF417 55-163mm 10mil PDF417 42-247mm 20mil PDF417 81-490mm 7mil QR 70-125mm 10mil QR/Data Matrix 40-182mm 20mil QR 36-367mm |
| Products Model | Generalscan R1521 Ruglove 2D imager Scan Engine glove Barcode Scanner GEA201/ 600mAh battery *1 |
|---|---|
| Barcode scanner | 2D scanner |
| Device type | Bluetooth |
| Manufacturer | Generalscan |
