Generalscan R3521 Thumbutton 2D imager Scan Engine Thumbutton Barcode Scanner SE4107/ 600mAh Battery *1

Details

Generalscan R3521 Thumbutton 2D imager Scan Engine Thumbutton Barcode Scanner SE4107/ 600mAh Battery *1

R352X Thumbutton Scanner Series

Versatility in Various Applications and Ease of Sharing Among Users

The lanyard wearing style is versatile and can be used across different applications, from retail floors to warehouses and logistics centers, wherever quick access to a scanner is needed. The lanyard style allows for easy transfer among users, optimizing resource utilization.

With Zebra SE4107 engine, the bright, rectangular illumination field and green LED aiming spot enable accurate aiming for exceptional ease of
use

White illumination increases scanning flexibility by enabling the easy capture of any color barcode, with the megapixel sensor, wide field of view and broad 20 in./50.8cm working range, barcode capture is faster and easier than ever.

Instant pairing via NFC offers a convenient and efficient way to establish connection with compatible devices

By tapping the scanner to an NFC-enabled device or an NFC tag, the pairing process is initiated instantly. This simplifies the setup and connection, providing a user-friendly experience. Such a feature is advantageous in scenarios where rapid deployment and ease of use are critical, allowing users to quickly integrate the scanner with NFC-enabled devices without the need for complex pairing procedures.

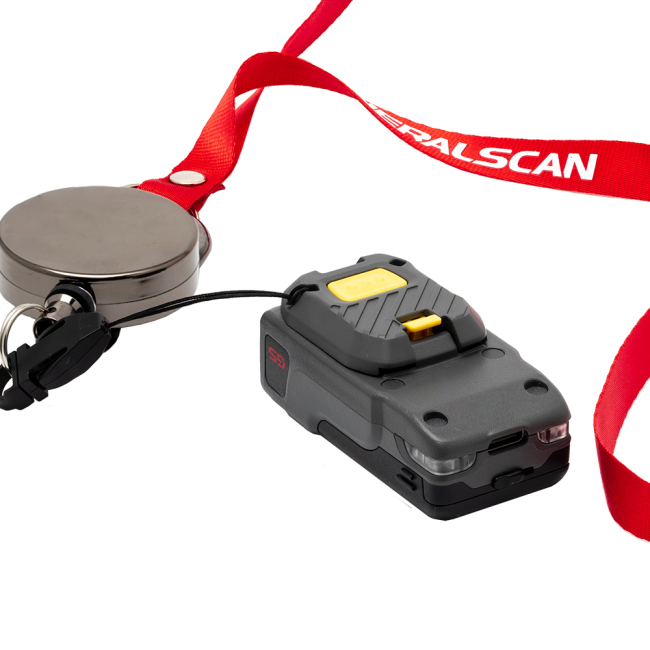

Increased Mobility and Flexibility By Landyard and Retractor

The lanyard and stainless steel retractor allow the scanner to be extended for use and then easily retracted back into its resting position. This feature provides rapid access to the scanner when needed, enhancing workflow efficiency and reduces the risk of the scanner being dropped or misplaced, which is particularly important in fast-paced work settings.

Specifications for R352X Thumbutton Scanner Series

	R3520 Thumbutton Barcode Scanner	R3521 Thumbutton Barcode Scanner
Dimension	64.9mm(L) × 34.5mm(W) × 24.7mm(D)	64.9mm(L) × 34.5mm(W) × 24.7mm(D)
Battery Capacity	600mAh	600mAh
Weight	30.3g(Scanner body)	39.2g(Scanner body)
Engine	Zebra SE2707	Zebra SE4107
Sensor	2D CMOS Image	2D CMOS Image
Skew, Pitch & Roll	Skew tolerance: ±60° from normal Pitch tolerance: ±60° from normal Roll tolerance: 360° from normal	Skew tolerance: ±60° from normal Pitch tolerance: ±60° from normal Roll tolerance: 360° from normal
Field of view	Horizontal:±42°；Vertical:±28°	Horizontal:±44.5°；Vertical:±33.5°
Charging Time	120min	120min
Battery Life	16.1h(scan every 5 seconds)	12.9h(scan every 5 seconds)
Bluetooth Profiles	HID Keyboard, SPP, and Bluetooth low energy(BLE)	HID Keyboard, SPP, and Bluetooth low energy(BLE)
USB Interface	USB Type-C	USB Type-C
USB Profiles	USB HID Keyboard, USB VCP (Virtual Serial Port)	USB HID Keyboard, USB VCP (Virtual Serial Port)
Drop Spec.	Multiple 4.9ft./1.5M drops to concrete	Multiple 4.9ft./1.5M drops to concrete
Tumble Spec.	Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute.	Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute.
Electrostatic Discharge (ESD)	±8kv DC discharge; ±15kv air discharge	±8kv DC discharge; ±15kv air discharge
Certification	CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC	CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC
Decode Range	5mil Code128 63-127mm 5mil Code39 51-162mm 6.6mil PDF417 63-160mm 10mil PDF417 45-228mm 20mil Code39 50-495mm 100% UPC 50-317mm 20mil DataMatrix 38-343mm 20mil QR 38-279mm	5mil Code128 71-229mm 5mil Code39 61-241mm 6.6mil PDF417 61-203mm 10mil DataMatrix 74-216mm 100% UPCA 46-495mm 15mil QR 30-292mm 20mil QR 30-356mm

More Information

More Information
Products Model	Generalscan R3521 Thumbutton 2D imager Scan Engine Thumbutton Barcode Scanner SE4107/ 600mAh Battery *1
Barcode scanner	2D scanner
Manufacturer	Generalscan
