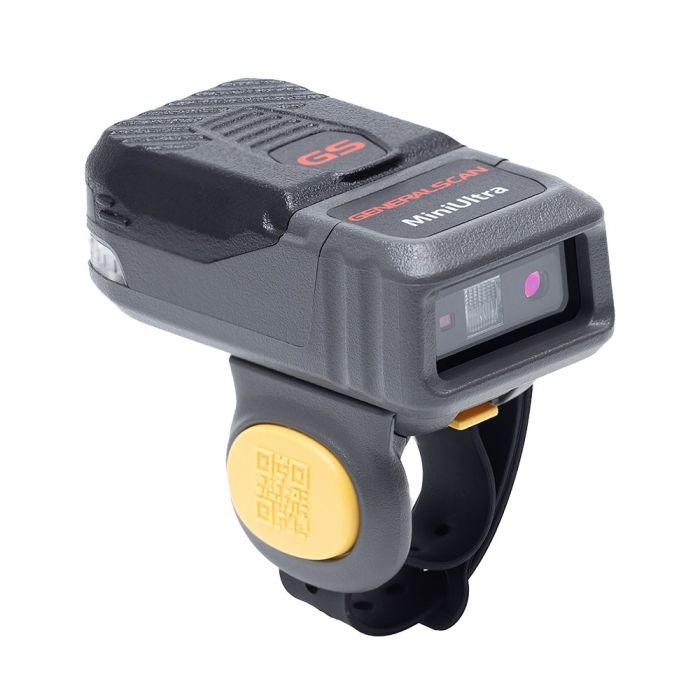

Generalscan R5522 2D imager Scan Engine Bluetooth Ring Barcode Scanner SE4750-MR/ 600mAh battery *2
R5522 Mid-Range scanner expands the working range even further, to more than 20 feet / 6 m.
Generalscan R5522 2D imager Scan Engine Bluetooth Ring Barcode Scanner SE4750-MR/ 600mAh battery *2
R552X Ring Scanner Series
With Dual-core Hardware PL5000 Decoder, it can decode in record time, even on damaged, poorly printed and low contrast barcodes or in poor lighting
The PL5000 hardware decoder boosts worker productivity with unmatched decode times, superior motion tolerance, plus advanced barcode and data capture processing features, plus support for the newest barcode symbologies
Whether the item is in hand or over 40 ft./12.2 m away, R5524 can capture it!
R5524 features a green laser aimer that’s up to 7x more visible than red, even in bright sunlight, and Zebra’s PRZM Intelligent Imaging Technology to deliver first-time-every, time decoding.With adjustable illumination and intelligent autofocus, users do not have to sacrifice scanning speed for working range
R5522 Mid-Range scanner expands the working range even further, to more than 20 feet / 6 m.
With a wide field of view, the R5522 also enables reading of larger bar codes, as well as simultaneous capture of multiple bar codes in milliseconds, Pick list mode enables users to easily select a single bar code to capture on a field of bar codes.
R552X series provides added durability and protection, making the scanner more resilient to drops, impacts, and harsh conditions
The combination of Bluetooth connectivity and a rugged design ensures reliable and efficient data capture in demanding situations, contributing to increased productivity and longevity of the scanning device
Specifications for R552X Ring Scanner Series
|
R5520 Ring Barcode Scanner |
R5521 Ring Barcode Scanner |
R5522 Ring Barcode Scanner |
R5524 Ring Barcode Scanner |
|
|
Dimension |
70.0mm(L)×36.0mm(W)×26.8mm(D) |
70.0mm(L)×36.0mm(W)×26.8mm(D) |
70.0mm(L)×36.0mm(W)×26.8mm(D) |
70.0mm(L)×36.0mm(W)×26.8mm(D) |
|
Battery Capacity |
600mAh |
600mAh |
600mAh |
600mAh |
|
Weight |
37g(Scanner body) |
37g(Scanner body) |
40.7g(Scanner body) |
37.5g(Scanner body) |
|
Engine |
Zebra SE4710 |
Zebra SE4770 |
SE4750MR |
Zebra SE55 |
|
Sensor |
2D CMOS Image |
2D CMOS Image |
2D CMOS Image |
2D CMOS Image |
|
Skew, Pitch & Roll |
Skew tolerance: ±60° from normal Pitch tolerance: ±60° from normal Roll tolerance: 360° from normal |
Skew tolerance: ±60° from normal Pitch tolerance: ±60° from normal Roll tolerance: 360° from normal |
Skew tolerance: ±60° from normal Pitch tolerance: ±60° from normal Roll tolerance: 360° from normal |
Skew tolerance: ±60° from normal Pitch tolerance: ±60° from normal Roll tolerance: 360° from normal |
|
Field of View |
Horizontal 42°, Vertical 28° |
Horizontal 48°, Vertical 30° |
Horizontal 31°, Vertical 23° |
Horizontal 37°, Vertical 21.4° |
|
Charging Time |
100min |
100min |
100min |
100min |
|
Battery Life |
10.25h(scan every 5 seconds) |
9.93h(scan every 5 seconds) |
9h(scan every 5 seconds) |
6.9h(scan every 5 seconds) |
|
Bluetooth Profiles |
HID Keyboard, SPP, and Bluetooth low energy(BLE) |
HID Keyboard, SPP, and Bluetooth low energy(BLE) |
HID Keyboard, SPP, and Bluetooth low energy(BLE) |
HID Keyboard, SPP, and Bluetooth low energy(BLE) |
|
USB Interface |
USB Type-C |
USB Type-C |
USB Type-C |
USB Type-C |
|
USB Profiles |
USB HID Keyboard, USB VCP (Virtual Serial Port) |
USB HID Keyboard, USB VCP (Virtual Serial Port) |
USB HID Keyboard, USB VCP (Virtual Serial Port) |
USB HID Keyboard, USB VCP (Virtual Serial Port) |
|
Drop Spec. |
Multiple 4.9ft./1.5M drops to concrete |
Multiple 4.9ft./1.5M drops to concrete |
Multiple 4.9ft./1.5M drops to concrete |
Multiple 4.9ft./1.5M drops to concrete |
|
Tumble Spec. |
Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute. |
Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute. |
Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute. |
Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute. |
|
Electrostatic Discharger(ESD) |
±8kv DC discharge; ±15kv air discharge |
±8kv DC discharge; ±15kv air discharge |
±8kv DC discharge; ±15kv air discharge |
±8kv DC discharge; ±15kv air discharge |
|
Certification |
CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC |
CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC |
CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC |
CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC |
| Products Model | Generalscan R5522 2D imager Scan Engine Bluetooth Ring Barcode Scanner SE4770/ 600mAh battery *2 |
|---|---|
| Barcode scanner | 2D scanner |
| Device type | Bluetooth |
| Manufacturer | Generalscan |
