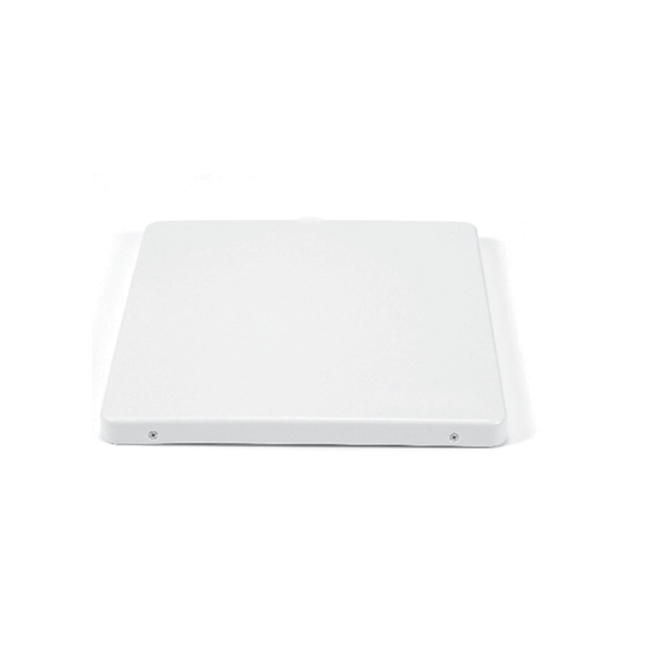

Invengo LSA4-SHD Stack HF Antenna
Invengo's LSA4-SHD Antenna is a robust high-frequency (HF) RFID antenna specifically designed to identify multiple items equipped with small RFID tags. its precise multi-read capabilities and rugged package make it ideal for industrial environments where accuracy, efficiency and durability are required.
Main Features of LSA4-SHD Stack Antenna
Robust table-top antenna
Precise reading zone
Delivered with a 3m built-in coaxial cable
Specifications of LSA4-SHD Stack Antenna
| Electrical | Operating Frequency | 13,56 MHz |
| Protocols Supported | ISO 15693, ISO 18000-3 Mode I | |
| RF Input Power | 2W | |
| Cable |
3 m (9.8 ft) built-in coaxial cable. Includes SMA connector |
|
| Reader compatibility |
Invengo Medio L40, Medio Pxxx family and Medio Lxxx family |
|
| Mechanical | Dimensions |
25,4 x 263 x 17 mm (11.3 x 10.3 x 0.6 in) |
| Weight | 1 kg (2.2 lbs) | |
| Casing | Includes metallic shielding | |
| Operating Temperature | 0ºC to 40ºC (32ºF to 104ºF) | |
| Product reference | DDP13762 |
| Products Model | Invengo LSA4-SHD Stack HF Antenna |
|---|---|
| RFID reader | HF RFID |
| Manufacturer | Invengo |
