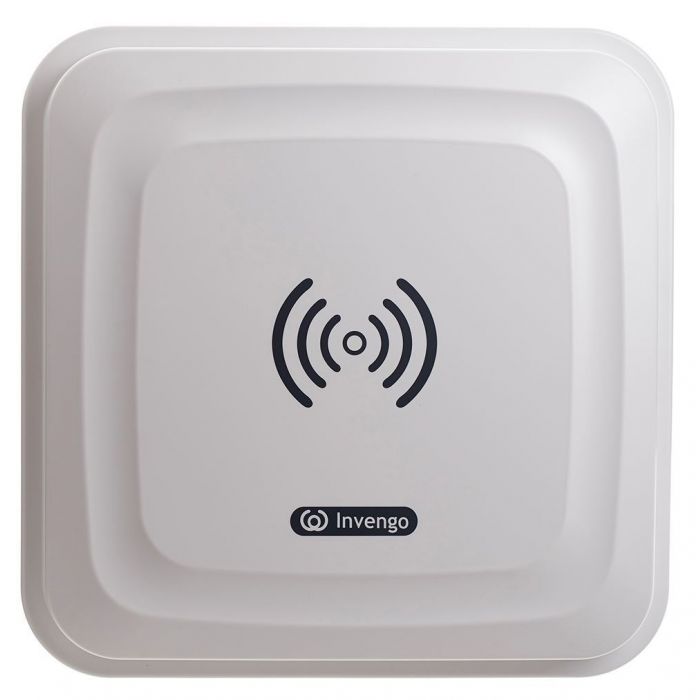

Invengo XC-AF26 High Gain Antenna
lnvengo's XC-AF26 high gain RFID antenna offers high gain, ruggedness and excellent shock and vibration resistance in a clean, durable, easy to install design. The XC-AF26 antenna comes in both Linear and Circularly polarized versions, making them ideal for asset tracking, logistics and vehicle tracking applications.
Main Features of XC-AF26 High Gain RFID Antenna
Operating Frequency
840 ~ 868 MHz and 902 ~ 928 MHz
High Gain
Excellent vibration and shock resistance
Linear or Circular Polarization
Low VSWR
Protection Level: IP65
Durable and clean design
Simple installation and maintenance
Specifications of XC-AF26 High Gain RFID Antenna
| Performance Parameter | Operating Frequency |
840 ~ 868 MHz 902 ~ 928 MHz |
| VSWR | ≤ 1.5:1 | |
| Gain | > 12 dBi | |
| H-Plane HPBW | 45˚ | |
| E-PlanePolarizationHPBW | 45˚Linear or Circular | |
| Antenna Impedance | 50 Ω | |
| Environmental | Operating Temperature | -40˚C to 70˚C (-40˚F to 158˚F) |
| Storage Temperature | -40˚C to 70˚C (-40˚F to 158˚F) | |
| Humidity Range | 5% ~ 95% RH | |
| Protection Level | IP65 | |
| Physical Parameters | Dimensions |
431 x 431 x 60 mm 16.97 x 16.97 x 2.36 in |
| Weight | Approx. 3,3 kg / 7.3 Lbs | |
| Case Material | Plastic ASA, Aluminium | |
| Models | Linear | XC-AF26L-FCC (902~928MHz) |
| Circular |
XC-AF26CP-FCC (902~928MHz) XC-AF26CP-ETSI (840~868MHz) |
| Products Model | Invengo XC-AF26 High Gain Antenna |
|---|---|
| RFID reader | UHF RFID |
| Manufacturer | Invengo |
