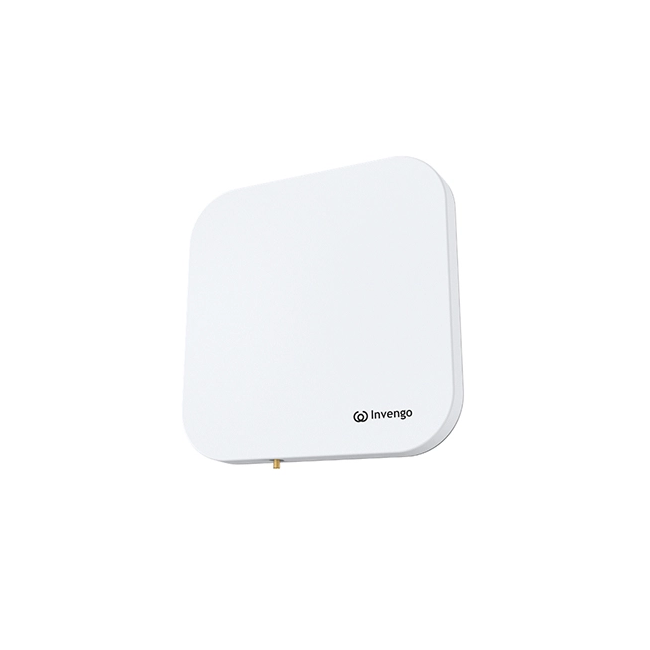

Invengo XC-AF812 Antenna
XC-AF812 is a RAIN RFID antenna with circular polarization. It adopts new structure and design which covers frequency band from 902MHz-928MHz. The antenna is allowed to used in regions where adopt CN and FCC standard. Featured with high gain(>7.15dBi) and high read speed of RFID tags, it can be applied on access control, warehouse management, asset management, logistics management, retail and etc.
Main Features of XC-AF812 Antenna
Designed for RAIN RFID application
Cover the frequency bands to abide by CN&FCC
High gain: >7.15dBi
Small size and exquisite workmanship
Specifications of XC-AF812-A/B Antenna
| Performance Specfications | Operating Frequency | 902MHz to 928MHz (CN&FCC) |
| VSWR | ≤1.3:1 | |
| Gain | >7.15dBi | |
| H-Plane HPBW | 60° | |
| E-Plane HPBW | 60° | |
| Polarization | Circular | |
| Impedance | 50Ω | |
| Connector |
Tpye N(XC-AF812-A) SMA-C-KY3(XC-AF812-B) N/SMA type RF coaxial connector (XC-AF812-C/D) |
|
| Environment Specfications | Operating Temperature | -20°C to +50°C |
| Storage Temperature | -20°C to +50°C | |
| Humidity Range | 20% to 90%RH | |
| Physical Specfications | Dimension | 258mm X 258mm x 27.0mm |
| Weight | 0.7Kg | |
| Case Materials | ABS+PC |
| Products Model | Invengo XC-AF812 Antenna |
|---|---|
| RFID reader | UHF RFID |
| Manufacturer | Invengo |
