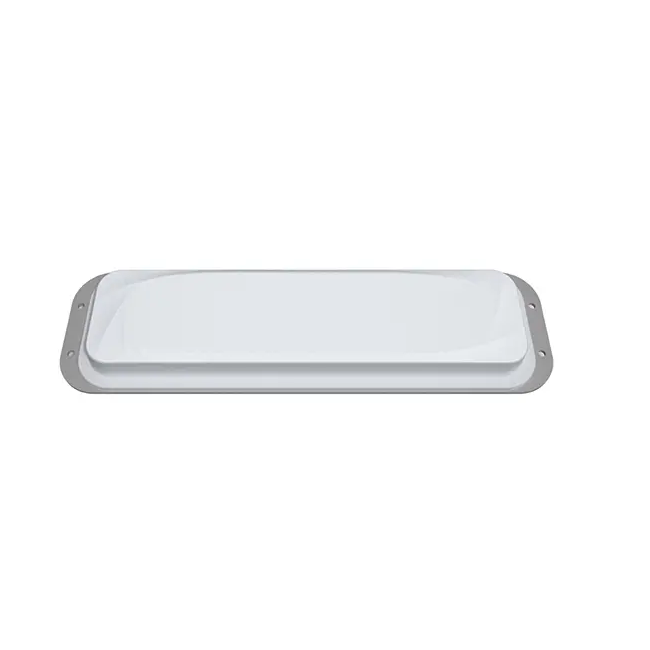

Invengo XC-AF900R1 Antenna
Invengo’s XC-AF900R1 linear polarized antenna offers high gain and covers the frequency band of 902MHz~928MHz.It adopts CN and FCC standards. The antenna is uniquely designed with a high protection level, excellent RF performance and easy installation. The XC-AF900R1 antenna is ideal for intelligent transportation systems, road/bridge/port vehicle management, digital warehouse management and logistics applications.
Specifications of XC-AF900R1 Antenna
| Performance Parameter | Operating Frequency | 902 ~ 928 MHz |
| VSWR | ≤ 1.3:1 | |
| Gain | 11 dBi | |
| H-Plane HPBW | 84˚ | |
| E-Plane HPBW | 27˚ | |
| Polarization | Linear | |
| Antenna Impedance | 50 Ω | |
| Environmental | Operating Temperature | -40˚C to 85˚C |
| Storage Temperature | -40˚C to 85˚C | |
| Humidity Range | ≤95% RH | |
| Physical Parameters | Dimensions |
620 x 177 x 47 mm |
| Weight | Approx. 2.4 kg | |
| Radome Material |
| Products Model | Invengo XC-AF900R1 Antenna |
|---|---|
| RFID reader | UHF RFID |
| Manufacturer | Invengo |
