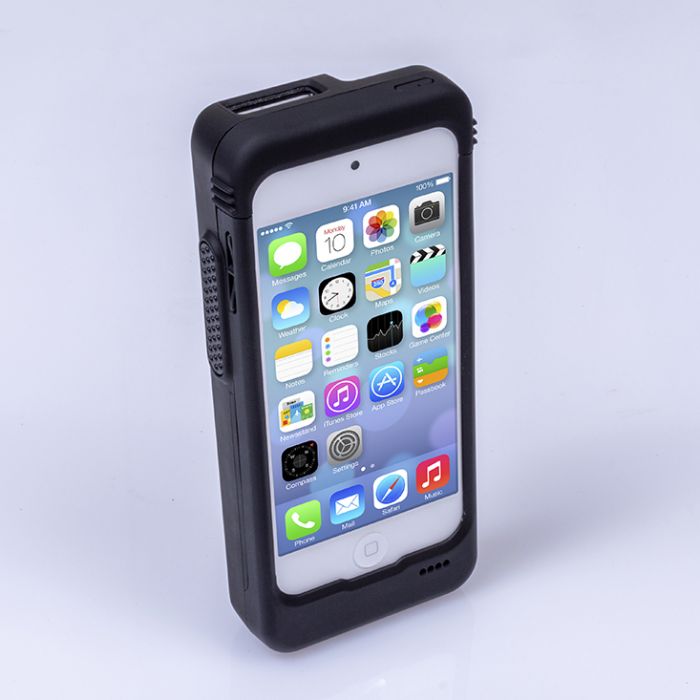

Linea Pro 5i Industrial 2D barcode scanner sled Honeywell N3680SR scanner

Linea Pro 5i Industrial 2D barcode scanner sled Honeywell N3680SR scanner

Buttons

2 scan button, 1 battery status button, 1 reset device

Contactless Reader (optional)

ISO/IEC 14443 Type A

MIFARE Mini, MIFARE Classic 1K, MIFARE Classic 4K,

MIFARE Ultralight, MIFARE Ultralight C, MIFARE Plus 2K,

MIFARE Plus 4K, MIFARE DESFire

ISO/IEC 14443 Type B

ISO/IEC 15693

JIS X 6319-4 - FeliCa

ISO/IEC 18000-3 – NFC

2D Barcode Reader

Opticon MDI-4000 - 640 x 480 CMOS (optional)

Honeywell N3680 - 640 x 480 CMOS (optional)

Connectors
USB Type-C port

Lightning connector (cradle)

Power transfer to phone

Device Compatibility
iPod touch 7th generation /iPhone5/5SE/SE

Audio Features

Electromagnetic buzzer

Power Supply

DC 5V through USB, DC 5V through single or 5 station charger

Battery

Rechargeable Li-Ion Battery 3.6 V, 2330 mAh,

Fuel Gauge microcontroller

Reliability

1,000,000 magnetic card swipes

Dimension W x D x H

68 x 144 x 26 mm

Weight

151 g

Operational Temperature

-10 °C to 40 °C / 5 to 90% RH

Storage Temperature

-20 °C to 50 °C / 5 to 90% RH

Compatible Accessories

Charger (GT1), 5-unit charger (GT5), Holster, Dual charger (DC1)
