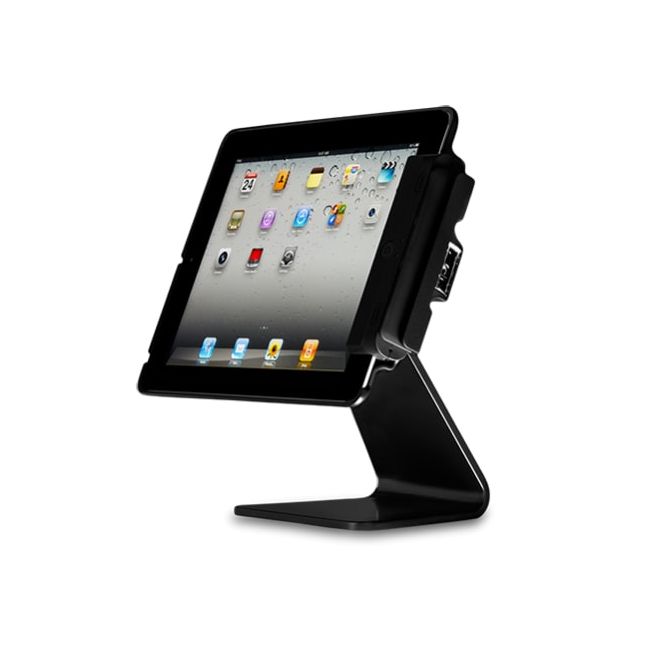

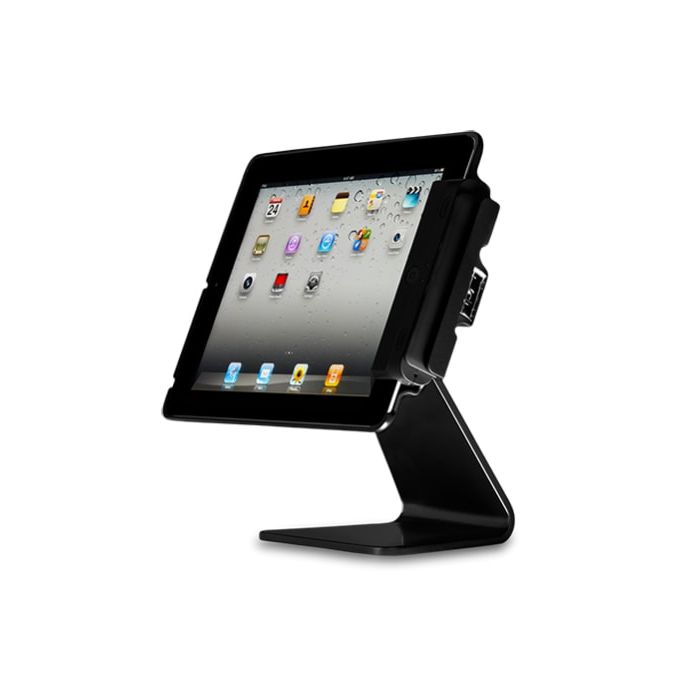

LineaTab 4 1D Barcode Scanner + Mag Strip + BT + RFID for iPAD
$513.24 $427.70
In stock
SKU
LTMSBTRF1D-IPAD
LineaTab 4 1D barcode scanner, magnetic stripe reader, Bluetooth and RFID for Apple iPAD
LineaTab 4 allows mobile workers to convert their iPad 4® into a powerful point-of-sale solution.
LineaTab 4 1D barcode scanner, magnetic stripe reader, Bluetooth and RFID for Apple iPAD
LineaTab 4 allows mobile workers to convert their iPad 4® into a powerful point-of-sale solution.
The LineaTab 4 includes a 1D or 2D barcode scanner, optional functions like 3-track magnetic card reader or secure MCR, RFID card reader, Bluetooth and a rechargeable battery in a very compact and durable protective case.
Compatibility
Connectivity
Options
Specifications:
Keyboard and Buttons:
Scan button
Magnetic Card Reader:
Triple track bi-directional
Encrypting Magnetic Card Reader:
Triple track bi-directional (optional)
AES-256, DUKPT for AES-128 and 3DES
Contactless Card Reader:
(optional) Supports:
MiFARE Mini
MiFARE Classic 1K / 4K
MiFARE Ultra-Light / Ultra-Light-C
MiFARE Plus 2K / 4K
ISO / IEC 14443 A&B
ISO / IEC 15693
DESFire
FeliCa
1D Barcode Reader:
Opticon MDL1000* - Laser Barcode Scan Engine (optional)
Supported Symbology 1D
JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128(EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey, Postal code: Chinese Post, Korean Postal Authority code Composite codes, MicroPDF417, PDF417
2D Barcode Reader:
Newland EM3070* - Image Sensor 752x480 CMOS (optional)
Intermec EA-30 - Image Sensor 752x480 CMOS (optional)
Opticon MDI3100 - Image Sensor 752x480 CMOS (optional)
Supported 1D and 2D Symbology:
Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey PDF417, Data Matrix (ECC200, ECC000, 050, 080, 100, 140), QR Code
Connectivity:
Apple 9 pin connector
Pass-through sync through mini USB
BT 2.0 Class 2 (option)
- SPP - Serial Port Profile
External serial port
Device Compatibility:
iPad 4, iPad Air, iPad Air 2, iPad mini 2, iPad mini 4
LED Indication:
2 LEDs for battery and device status
Audio Features:
Electro-Magnetic Buzzer
Power Supply:
DC 5V through mini USB
DC 5V through Single or 5 stations charger
Battery:
Rechargeable Li-Ion Battery 3.7V / 1100 mAh
Reliability:
1 000 000 magnetic card swipes
Certificates:
CE, FCC, PCI PTS 3.x (when Secure Magnetic Card Reader is installed), Apple® Mfi
Dimension W x D x H:
128 x 51 x 45 mm
Weight:
115 g with battery and 2D barcode reader (without iPad)
Operational temperature range:
-10 °C to +40 °C / 5 to 90% RH
Storage temperature range:
-20 °C to +50 °C / 5 to 90% RH
Compatible Accessories:
Single charger (GT1)
5 stations charger (GT5)
Products Model | LineaTab 4 1D Barcode Scanner + Mag Strip + BT + RFID for iPAD |
---|---|
Barcode scanner | 1D scanner |
Manufacturer | Datecs |
