Riotec DC9277L GODASCAN 2D Wired OTG Barcode Scanner

Riotec DC9277L GODASCAN 2D Wired OTG Barcode Scanner

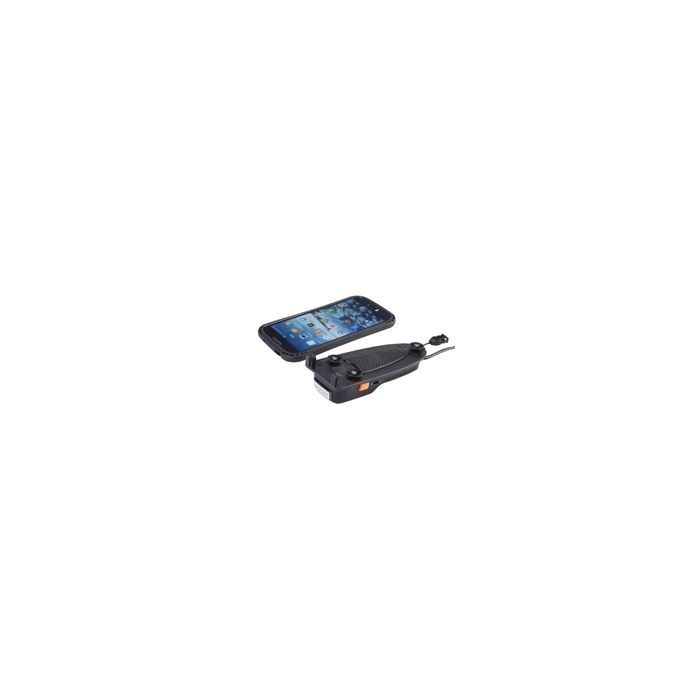

The Riotec DC9277L GODASCAN 2D OTG Android barcode scanner is a unique Plug and Play wired scanner for Android OTG phones, that will enable any Android PDA and smartphone to become a barcode scanner.

Product Description

With the Internet of Things (IOT), Android/iOS mobilepostech becomes the tool for data collection. RIOTEC develops the "GODASCAN” which applied for Android/iOS mobilepostech use.

• DC9277L: Plug and Play (Wired, for Android OTG phone)
• With appropriate APP, the Android mobilepostech becomes data collector.
• Touch trigger makes operation is easy.
• GODASCAN can be used for different size of iOS / Android devices (from 4” to 6” size)
• The back of GODASCAN has PU glue / sucker which can be stuck on smart-phone strongly. PU glue can be repeatedly used.
• GODASCAN has Li-Ion battery inside which provides power to scanner.
• You can charge both GODASCAN & mobilepostech through its micro USB port directly.

Specifications:

• Model Name:               DC9277L
• Description:                 Wired GODASCAN
• Engine:                        RIOTEC 2D engine

Performance Characteristics:

• Light source:                 625±10 nm LED
• Depth of field:               (20 mil Code 39)：320 mm
• Sensor:                         CMOS (752×480 pixels)

Best resolution:                  1D (CODE39)≥ 5mil

                                           2D (PDF417) ≥ 6mil

• Reading angle:           Tilt: 360° / Pitch ±50° / Skew ±50°
• Print contrast:            ≥ 30%
• Indicators:                 Beeper
• Charge:                       Micro USB port

Symbologies:                       Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E,  Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93,  UCC/EAN-128, GS1 Databar, PDF417, QR Code, Data Matrix

Interface:                                            USB OTG

Electrical Characteristics

• Input voltage:                                    5 V/DC ± 5%
• Current – operating:                       230 mA
• Radio Range:                                      BT Class 1
• RF Frequency:                                   2.4GHz
• Communication:                               HID profile, SPP profile
• Battery Type:                                     3.7V 900mAh Li-Ion battery
• Scans per charge:                             more than 10,000 scans when fully charged
• Charge Time:                                      4 ~ 5 hours
• Current Charging:                             500 mA
• Power cable:                                      Micro USB cable

Physical Characteristics

• Dimension:                                         125 X 52.5 X 35 mm (L * W * H)
• Weight:                                                88 g +/- 4 g
• User Environment
• Temperature-operation:                       '0°C to 50°C
• Temperature-storage:                         -10°C to 60°C
• Humidity-operation:                            95% relative humidity, non-condensing

Decode Zone:

• 5 mil Code 39
• 60mm ~ 120mm
• 13 mil UPC-A
• 45mm ~ 260mm
• 20 mil Code 39
• 70mm ~ 320mm
• 6.67 mil PDF417
• 70mm ~ 125mm
• 10 mil DataMatrix
• 40mm ~ 160mm
• 20 mil QR Code
• 40mm ~ 275mm
