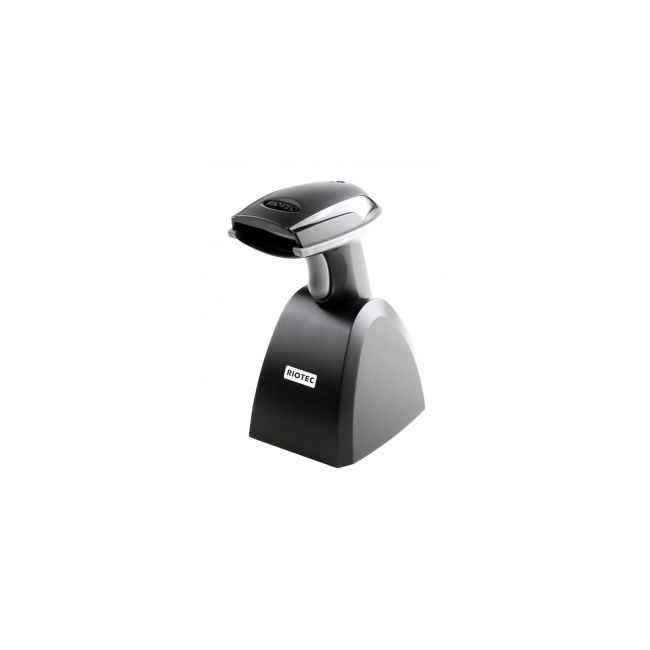

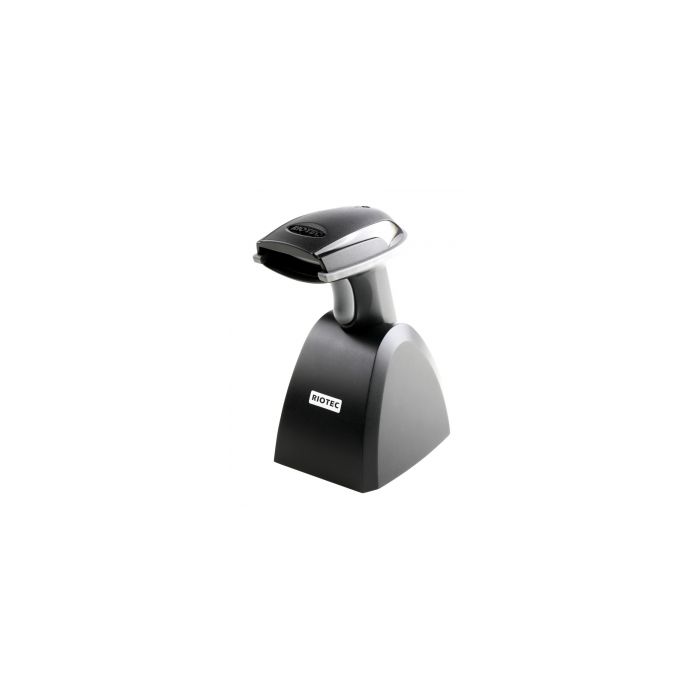

Riotec iCR6307ABQ 1D CCD Bluetooth barcode scanner, 1MB

£117.00
In stock
SKU
ICR6307ABQ
Riotec iCR6307ABQ 1D CCD Bluetooth barcode scanner with 1MB memory


Product Name : iCR6307ABQ Ultra-long range CCD) Bluetooth Scanner + 1MB memory + USB (HID) + Charging Cradle

Product Description

˙ Built-in ultra long-range CCD engine
˙ Quick scan rate: 300 scans/sec
˙ Supports Apple iOS, Android, Windows devices through Wireless

Riotec iCR6307ABQ 1D CCD Bluetooth barcode scanner with 1MB memory


Product Name : iCR6307ABQ Ultra-long range CCD) Bluetooth Scanner + 1MB memory + USB (HID) + Charging Cradle

Product Description

˙ Built-in ultra long-range CCD engine
˙ Quick scan rate: 300 scans/sec
˙ Supports Apple iOS, Android, Windows devices through Wireless
˙ Wide working area: Wireless Class 1 (100m, in open area)
˙ iCR6307ABM/7BQ (with memory) support data transmission
  mode & data storage mode (batch mode)
˙ Equipped with 1MB memory, it can store more than 65,000
  EAN13 barcodes
˙ Cradle functions as 2.4G wireless receiver & charging stand
˙ Support interface: USB (Serial)/ USB(HID)



Product Character

1D Wireless CCD Barcode Scanner

Features

˙ Quick scan speed: 300 scans/sec
˙ Supports Apple iOS, Android, and Windows devices via Wireless
˙ 2.4GHz wireless radio range: 100m in open area
˙ iCR6304ABM/ABQ (with memory inside) support data
  transmission mode & data storage mode (batch mode)
˙ Equipped with 1M memory, it can store more than
  65,000 EAN13 barcodes
˙ Cradle works as 2.4G wireless receiver & charging stand
˙ Support interface: USB (Serial)/ USB(HID)



Scanners Specifications

Model Name



iCR6307ABU
(without 1MB memory inside)

iCR6307ABQ
(with 1MB memory inside)

Description



2.4 GHz Wireless CCD Barcode Scanner

Engine



Ultra-long range CCD engine

Performance Characteristics

Light Source



610nm~640nm RED LED

Depth of Field



UPCA (13mil): 30mm~600mm
EAN13 (13mil): 30mm~590mm

Scan Speed



300 scans/sec

Best Resolution



3mils

Print Contrast



>= 30%

Reading Angle



     Pitch +/-45° @ 0° Roll and 0° Skew
    Roll +/-30° @ Pitch and 0° Skew
Skew +/-60° @ Roll and 0° Pitch

 SkewIndicators



LED & beeper

Interface



USB (Serial) / USB(HID)

USB (Serial) / USB(HID)

Symbologies



EAN-13, EAN-8, UPC-A, ISSN, ISBN, Codabar, Code 128, Code 93,         ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5,              GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey

Auto-sensing



Up to 180 mm
(iCR6327AB, iCR6327ABU, iCR6327ABM, iCR6327ABQ only)

Electrical Characteristics

Input voltage



5 VDC ± 0.5 V

Current - operating



250 mA max

Radio Range



100M (Wireless Class 1, in open area)

RF Frequency



2.4GHz

Communication



SPP (Serial Port Profile) with cradle/ HID (HID profile)
with smart phone or tablet 2.4GHz Wireless

Battery Type



AA NiMH rechargeable battery  1.2V x 2 (2.4V 2300mAH)

Scans per charge



more than 20,000 scans when fully charged

Charge Time



4 ~ 5 hours

Current Charging



500 mA Max.

Memory capacity



No memroy

1MB
(can save 65,000 sets more
EAN 13 barcode)

Physical Characteristics

Dimension (L*W*H)



90 X 60 X 165 mm(for scanner)

Weight



 165 g +/- 5 g  (for scanner), 225 g +/- 5 g  (for cradle)

User Environment

Temperature-operation



    0 to 50

Temperature-storage



 -10 to 60

Humidity-operation



5% to 95% relative humidity, non-condensing

Ambient Light



0 ~ 100,000 Lux

Shock



1.2 m drop onto concrete



More Information
Products ModelRiotec iCR6307ABQ 1D CCD Bluetooth barcode scanner, 1MB
Barcode scanner1D scanner
Operating systemN/A
Screen sizeN/A
ManufacturerRiotec
