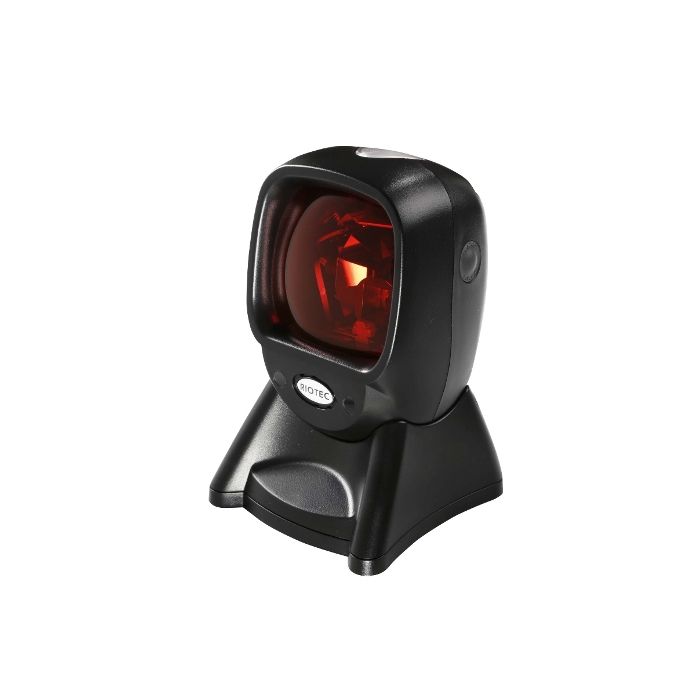

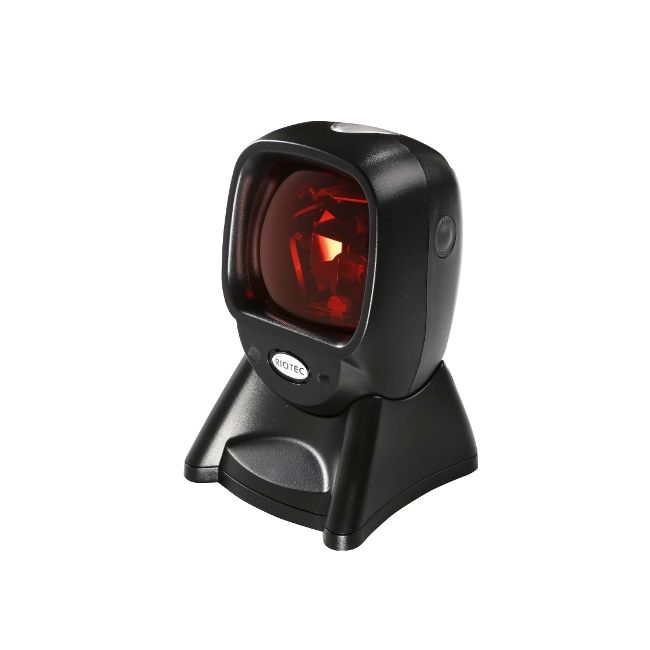

Riotec OM7222JW 2D Omni-Directional wide angle USB scanner

£152.00
In stock
SKU
OM7222JW

Riotec OM7222JW 2D Omni-Directional wide angle USB scanner (Motorola SE3300 WA- 2D engine)

The OM7222JW 2D Omni-Directional wide angle USB scanner is the perfect device for use in point of sale scenarios when connect to a POS machine or checkout terminal in supermarkets or retail stores.

Product Description ˙
˙ Omni-Directional 2D barcode scanner
˙ With wide view SE3300WA 2D engine, easy to scan barcodes
˙ Strong housing design
˙ Can adjust the scanning angle easily

Riotec OM7222JW 2D Omni-Directional wide angle USB scanner (Motorola SE3300 WA- 2D engine)

The OM7222JW 2D Omni-Directional wide angle USB scanner is the perfect device for use in point of sale scenarios when connect to a POS machine or checkout terminal in supermarkets or retail stores.

Product Description ˙
˙ Omni-Directional 2D barcode scanner
˙ With wide view SE3300WA 2D engine, easy to scan barcodes
˙ Strong housing design
˙ Can adjust the scanning angle easily
˙ Can read the 1D/2D barcodes on papers, smartphones, tickets
˙ Suitable for convenient store, supermarket use

Product specifications:

       Omni-Directional barcode scanner

Features


  ˙ Omni-Directional 2D barcode scanner
˙ With wide view SE3300WA 2D engine, easy to scan barcodes
˙ Strong housing design
˙ Can adjust the scanning angle easily
˙ Can read the 1D/2D barcodes on paper, smartphone, ticket
˙ Suitable for convenient store, supermarket use

Scanners Specifications

  Model Name   OM7222JW
  Description   Omni-Directional barcode scanner
  Engine   Motorola SE3300WA
  Scan Mode   Automatic

Performance Characteristics



˙

Light source   Aiming LED: 617nm, dot optical power: 0.19mW typical
Illumination Element: 2x 625 nm LEDs

˙

Depth of field   1D (100%UPC-A )315 mm
2D(15mil PDF417) : 252 mm

˙

Scan speed   60 frame /sec

˙

Sensor   CMOS (752×480 pixels)

˙

Best resolution   1D (5mil):Code 39
2D (6.67mil):PDF417

˙

Print contrast   25%

˙

Reading angle    Roll: 360° / Pitch: ±60° / Skew ±60°

˙

Indicators   LED & beeper

˙

Interface   RS232, USB (Serial), USB(HID)

˙

Symbologies   UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13, Bookland EAN, Code 128,
Code 23 (Italian Pharma Code),  UCC/EAN-128, ISBT 128, Code 39,
Trioptic Code 39, Code 93, Code 11, Interleaved 2of5, Discrete 2of5,
Chinese 2of5, Codabar, MSI, GS1 DataBar,
PDF 417, MicroPDF417, Datamatrix, QR Code, Micro QR Code, Aztec,
RSS, Composite, TLC-39, MaxiCode Postal: US PostNet, US Planet,
UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX)

Electrical Characteristics

˙

Input voltage   5 V/DC ± 0.5 V

˙

Current - operating   460 mA

Physical Characteristics

˙

Dimension (L * W * H)   103.3 X 90.7 X 156.1 mm

˙

Weight   380 g
Environment

˙

Temperature-operation    '0°C to 50°C

˙

Temperature-storage   -10°C to 60°C

˙

Humidity-operation   5% to 95% relative humidity, non-condensing

˙

Ambient Light   Maximum 86100Lux. (direct sunlight)

Decode Zone

˙

  5 mil Code 39   23 ~ 157 mm

˙

  6.67 mil PDF 417   35 ~ 146 mm

˙

10 mil Data Matrix   Field of view limited ~ 173 mm

˙

100% UPC-A



22 ~ 315 mm

˙

15 mil PDF 417



Field of view limited ~ 252 mm





More Information
Products ModelRiotec OM7222JW 2D Omni-Directional wide angle USB scanner
Barcode scannerN/A
Operating systemN/A
Screen sizeN/A
ManufacturerRiotec
