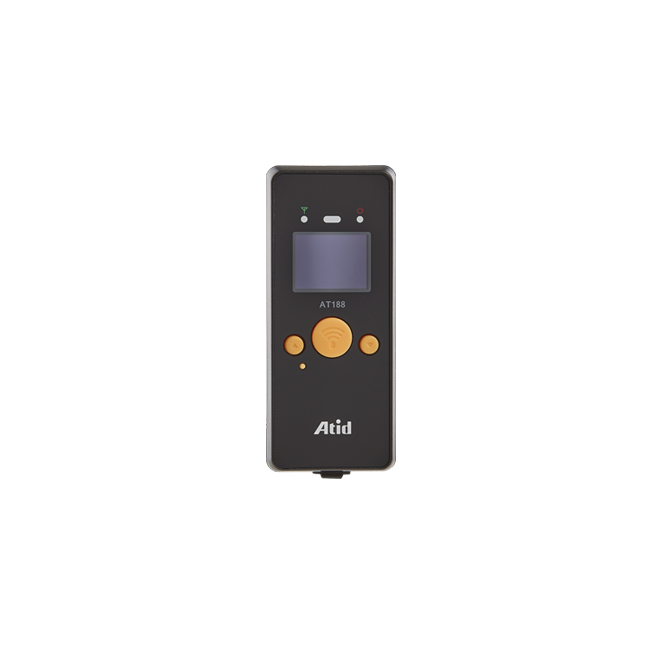

ATID XC-AT188 UHF Handheld Reader
ATID's XC-AT188 RFID scanner handheld is an ultra-compact RAIN RFID (UHF) handheld reader. Featured with various operating systems, Bluetooth, USB and 1D laser or 2D image scanner, this compressed yet solid handheld RFID scanner is a dust and water resistant reader suitable for library, logistics and military tracking applications.
Main Features of XC-AT188 UHF Handheld RFID Reader
ARM7 Core RFID hand scanner
Memory 64KB RAM / 256KB ROM / Ext. 8Mb
1D or 2D Barcode Scanner
RAIN RFID Reader
Bluetooth Class 4.1 Classic (HID/SPP)
Windows and Android Support
Specifications of XC-AT188 UHF Handheld RFID Reader
| PERFORMANCE CHARACTERISTICS | |
| Processor | ARM7 Core |
| Supported Platforms | Windows, Android, iOS (BLE Only) |
| Internal Storage | 1MByte Flash Memory |
| PHYSICAL CHARACTERISTICS | |
| Dimensions (W x L x H) |
115 x 50 x 35mm |
| Weight | 160g (with Battery) |
| Power | 1,100mAh Li-ion Battery |
| Display | 1.3 inch OLED Display |
| USB Interface | 1 USB Port / USB Type-C |
| Notification | LED Indication, Buzzer, Vibrator |
| DATA CAPTURE | |
| RFID (UHF) | Protocol : EPC GEN2, ISO/IEC 18000-6C Reading Range : ~1m (Depending on environment and tag type) Writing Range : ~0.5m (Depending on environment and tag type) RF Output : 0.5W (27dBm, MAX) Antenna : Circular Patch Antenna / 1.6 dBic Batch Mode : Store Max 10,000 Tags
Support Frequency (Optional) |
| Barcode | 2D Engine (Support to read 1D & 2D Barcode) |
| WIRELESS COMMUNICATION | |
| Bluetooth | BT V2.1 + EDR / BLE V4.1 |
| USER ENVIRONMENT | |
| Operating temperature | -10℃ to 45℃ |
| Storage temperature | -30℃ to 70℃ |
| Humidity | 5~95% (non-condensing) |
| Drop Specification | 1.5m Drop to concrete |
| Dust & Water Proof | IP65 |
| Products Model | ATID XC-AT188 UHF Handheld Reader |
|---|---|
| Barcode scanner | 2D scanner |
| RFID reader | UHF RFID |
| Device type | Bluetooth |
| Manufacturer | ATID |
