Generalscan R3520 Ruglove 2D imager Scan Engine Bluetooth Glove Barcode Scanner SE2707/ 600mAh battery *1
Generalscan R3520 Ruglove 2D imager Scan Engine Bluetooth Glove Barcode Scanner SE2707/ 600mAh battery *1
R352X Glove Scanner Series
Wash with water is a significant advantage, enhancing its suitability for hygiene-sensitive environments, contributing to its durability, and simplifying its maintenance
The ease of cleaning and maintenance potentially reduces the need for frequent replacements due to contamination or damage from liquids, offering long-term cost savings. The ability to wash the glove with water ensures that hygiene standards can be consistently maintained. This is especially important in preventing cross-contamination and ensuring a sanitary working environment.

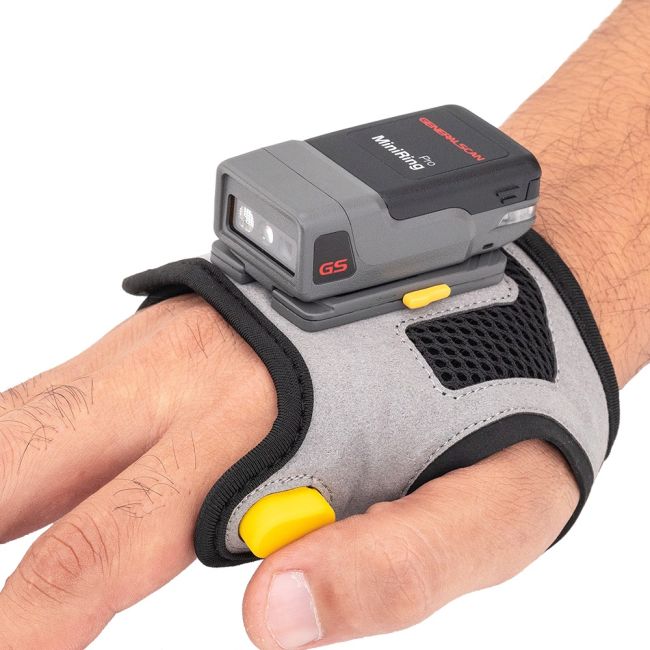

Apply Ergonomic Fit and Lightweight Material
Generalscan Ruglove scanners are designed to fit comfortably on the hand, much like a regular glove. It is available in three sizes and with left and right hand features to accommodate different hand sizes and shapes. Despite being lightweight and flexible, the materials used are also durable to withstand the rigors of industrial or retail environments, combining comfort with the necessary robustness.
Ease of Putting On and Taking Off
Generalscan Ruglove scanner is designed for ease of use, meaning it can be easily put on and taken off. This is particularly important in jobs where users may need to frequently remove the scanner for breaks or other tasks. Flexibility is key in a glove scanner design. Generalscan Ruglove scanner allows for the natural movement of fingers and the hand, enabling the user to perform tasks without restriction or discomfort.
Specifications for R352X Ruglove Scanner Series
|
R3520 Ruglove Barcode Scanner |
R3521 Ruglove Barcode Scanner |
|
|
Dimension |
74.8mm(L)×34.7mm(W)×25.3mm(D) 2.94in.(L)×1.37in.(W)×1.0in.(D) |
74.8mm(L)×34.7mm(W)×25.3mm(D) 2.94in.(L)×1.37in.(W)×1.0in.(D) |
|
Battery Capacity |
Standard battery: 400mAh Extended battery: 600mAh |
Standard battery: 400mAh Extended battery: 600mAh |
|
Weight |
With standard battery ：48g /1.69oz With extended battery：50g /1.76oz |
With standard battery ：48g /1.69oz With extended battery：50g /1.76oz |
|
Engine |
Zebra SE2707 |
Zebra SE4107 |
|
Sensor |
2D CMOS Image |
2D CMOS Image |
|
Skew, Pitch & Roll |
Skew tolerance: ±60° from normal Pitch tolerance: ±60° from normal Roll tolerance: 360° from normal |
Skew tolerance: ±60° from normal Pitch tolerance: ±60° from normal Roll tolerance: 360° from normal |
|
Field of view |
Horizontal:±42°；Vertical:±28° |
Horizontal:±44.5°；Vertical:±33.5° |
|
Charging Time |
400mAh, 80min 600mAh, 100min |
400mAh, 80min 600mAh, 100min |
|
Battery Life |
400mAh, 10.7h(scan every 5 seconds) 600mAh, 16.1h(scan every 5 seconds) |
400mAh, 8.6h(scan every 5 seconds) 600mAh, 12.9h(scan every 5 seconds) |
|
Glove Type |
Ruglove-Lycra: one-size-fits-all(adjustable) Ruglove-Silicone: one-size-fits-all(adjustable) Ruglove-MK2(Microfiber): Small(S) Medium(M) Large(L) |
Ruglove-Lycra: one-size-fits-all(adjustable) Ruglove-Silicone: one-size-fits-all(adjustable) Ruglove-MK2(Microfiber): Small(S) Medium(M) Large(L) |
|
Bluetooth Profiles |
HID Keyboard, SPP, and Bluetooth low energy(BLE) |
HID Keyboard, SPP, and Bluetooth low energy(BLE) |
|
USB Interface |
USB Type-C |
USB Type-C |
|
USB Profiles |
USB HID Keyboard, USB VCP (Virtual Serial Port) |
USB HID Keyboard, USB VCP (Virtual Serial Port) |
|
Drop Spec. |
Multiple 4.9ft./1.5M drops to concrete |
Multiple 4.9ft./1.5M drops to concrete |
|
Tumble Spec. |
Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute. |
Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute. |
|
Electrostatic Discharge (ESD) |
±8kv DC discharge; ±15kv air discharge |
±8kv DC discharge; ±15kv air discharge |
|
Certification |
CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC |
CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC |
|
Decode Range |
5mil Code128 63-127mm 5mil Code39 51-162mm 6.6mil PDF417 63-160mm 10mil PDF417 45-228mm 20mil Code39 50-495mm 100% UPC 50-317mm 20mil DataMatrix 38-343mm 20mil QR 38-279mm |
5mil Code128 71-229mm 5mil Code39 61-241mm 6.6mil PDF417 61-203mm 10mil DataMatrix 74-216mm 100% UPCA 46-495mm 15mil QR 30-292mm 20mil QR 30-356mm |
| Products Model | Generalscan R3520 Ruglove 2D imager Scan Engine Bluetooth Glove Barcode Scanner SE2707/ 600mAh battery *1 |
|---|---|
| Barcode scanner | 2D scanner |
| Device type | Bluetooth |
| Manufacturer | Generalscan |
