SMP iScanCase Bluetooth 2D Barcode iPhone Silicon Case Scanner
SMP iScanCase Bluetooth 2D Barcode iPhone Silicon Case Scanner

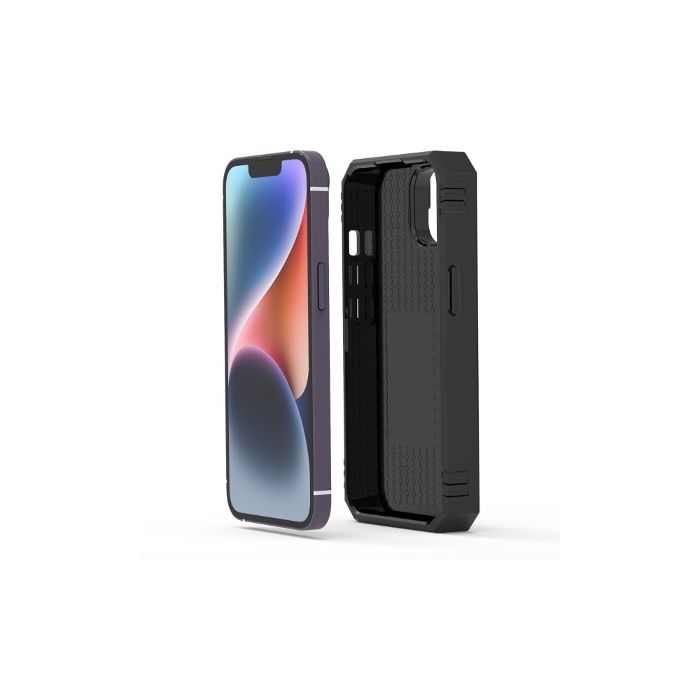

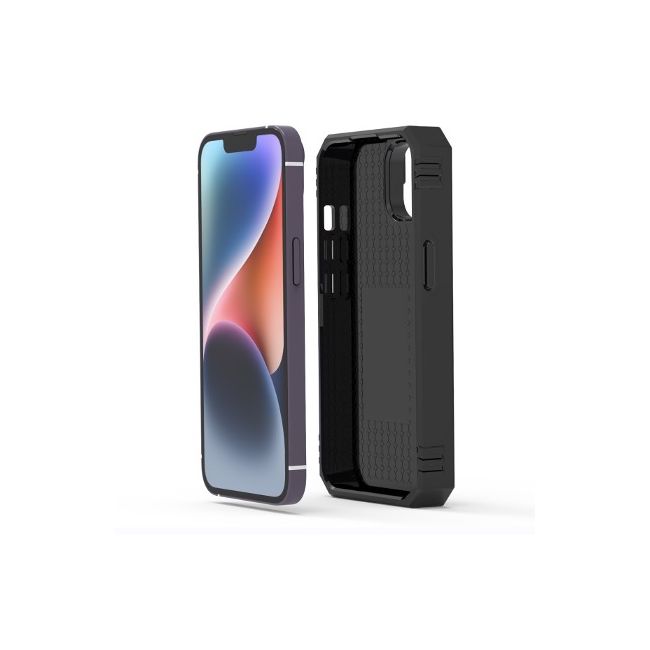

A rugged silicon case with integrated barcode scanner offering a 2D barcode scanning solution for iPhone devices. The case has a built-in backup battery to provide power and additional battery backup power for the iPhone 14, 14 Pro and iPhone SE.
Functions:
• Support 1D & 2D, paper & digital codes.
• Support wired data transfer while charging by USB cable.
• Wired & Wireless 2.4G connection.
• 3000mAh battery allows continuous working for 3 days.
• 16MB large capacity storage.
• Fashionable & stylish design.
• Wired & wireless dual mode freely switching.
• Support storage mode & instant upload mode.
• Support keyboard language setting.
• You can add time for each barcode you scan to know clearly when you scan it.
• Supports iPhone 14, iPhone 14 Pro, iPhone SE.
• iOS SDK available for development.
Technical specifications:
Type 2D Phone case Back clip Bluetooth Barcode Scanner
Sensor CMOS, Global shutter
Interface Bluetooth + USB
Barcode scanner optical Sensor 640 * 480
Resolution: 4 mil
Print contrast ratio: 30%
Depth of field: 6~30cm
Scanning Angle: Rotation ±30°
Inclination ±45°
Supported Symbologies:
1D:Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar,
China post 25, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-
128, GS1 Databar, etc.
2D:PDF417 / QR code / Data Matrix / Aztec etc.
Compatible models iPhone 14 / iPhone 14 Plus / iPhone SE
Communicate Distance 2 in 1: Bluetooth + USB
Bluetooth Distance: 10 meter (visual distance) Compatible
iOS/Android/Windows
Support HID/SPP/BLE
Power Battery: 500mA Li-ion Current Consumption: 20mA Operating
Current :80mA
Charge Time: 2-3hours Continue working for 8 hours
Standby Time: 30 Days
Memory 16Mb (Can Store 50000+ Barcodes Data)
Durability Temperature in operation: 0 to 50 °C / 32 to 122 °F
Temperature in storage: -10 to 50 °C / -4 to 140 °F
Humidity in operation: 20 - 85% (non-condensing)
Humidity in storage: 20 - 85% (non-condensing)
Physical Weight: 66g (include battery)
Specifications:
Technical specifications:
|
Type |
2D Phone case Back clip Bluetooth Barcode Scanner
|
|
Sensor |
CMOS, Global shutter |
|
Interface |
Bluetooth + USB
|
|
Barcode scanner optical |
Sensor 640 * 480 2D:PDF417 / QR code / Data Matrix / Aztec etc. |
|
Compatible models
|
iPhone 14 / iPhone 14 Plus / iPhone SE
|
|
Communicate Distance
|
2 in 1: Bluetooth + USB
|
|
Power
|
Battery: 500mA Li-ion Current Consumption: 20mA Operating Current :80mA Charge Time: 2-3hours Continue working for 8 hours
|
|
Memory
|
16Mb (Can Store 50000+ Barcodes Data)
|
|
Durability
|
Temperature in operation: 0 to 50 °C / 32 to 122 °F
|
|
Physical |
Weight: 66g (include battery) |
| Products Model | SMP iScanCase Bluetooth 2D Barcode iPhone Silicon Case Scanner |
|---|---|
| Barcode scanner | 2D scanner |
| Device type | PDA sled |
| Manufacturer | SMP |
