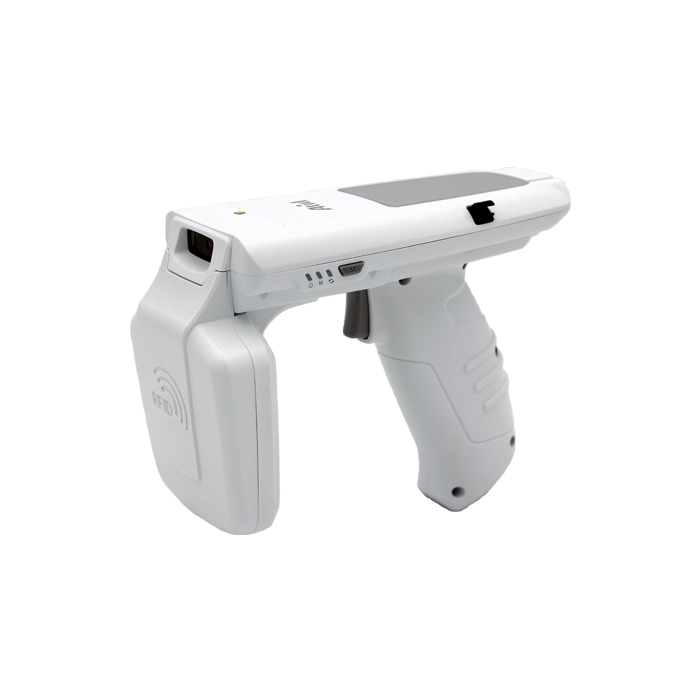

ATID ATS200 2D barcode scanner, UHF RFID reader, Bluetooth, Pistol Grip Handle and Cradle
– UHF EPC Gen2, ISO / IEC 18000-6C
– 1D & 2D Barcode Scanning
– BT V2.1 + EDR / BLE V4.1
– Compatible with Windows, Android & iOS Host
– Ergonomic Design
– Support Linear Antenna (Optional)
– Dropspec 1.5m (5ft)
– IP65
ATID ATS200 2D barcode scanner, UHF RFID reader, Bluetooth, Pistol Grip Handle and Cradle
The ATS200 is a pistol grip gun-type UHF RFID reader and 2D barcode scanner that supports Windows, Android and iOS (BLE only) handheld devices enabling users to reader and write RFID tags and read 1D/2D barcodes within a retail or warehousing enviroment. The device will will support all common smartphones by mounting the devices on the upper part of the scanner using double sided M3 sticky pads.
Highlights:
– UHF EPC Gen2, ISO / IEC 18000-6C
– 1D & 2D Barcode Scanning
– BT V2.1 + EDR / BLE V4.1
– Compatible with Windows, Android & iOS Host
– Ergonomic Design
– Support Linear Antenna (Optional)
– Dropspec 1.5m (5ft)
– IP65
Specifications:
| PERFORMANCE CHARACTERISTICS | |
| Processor | ARM7 Core |
| Supported Platforms | Windows, Android, iOS (BLE Only) |
| PHYSICAL CHARACTERISTICS | |
| Dimensions (W x L x H) |
76.1 x 173.7 x 132 mm |
| Weight | 420g (with Battery) |
| Power | 5,200mAh Li-ion Battery |
| USB Interface | 1 USB Port / USB Type-C |
| Notification | LED Indication, Buzzer, Vibrator |
| DATA CAPTURE | |
| RFID (UHF) | Protocol : EPC GEN2, ISO/IEC 18000-6C Reading Range : ~6m (Depending on environment and tag type) Writing Range : ~0.5m (Depending on environment and tag type) RF Output : 1W (30dBm, MAX) Antenna : Circular Antenna (1 dBi) / Linear Antenna (4 dBi / Optional)
Support Frequency (Optional) |
| Barcode | 2D Engine (Support to read 1D & 2D Barcode) |
| WIRELESS COMMUNICATION | |
| Bluetooth | BT V2.1 + EDR / BLE V4.1 |
| USER ENVIRONMENT | |
| Operating temperature | -20℃ to 50℃ |
| Storage temperature | -30℃ to 70℃ |
| Humidity | 5~95% (non – condensing) |
| Drop Specification | 1.5m |
| Dust & Water Proof | IP65 |
Accessories:
 |
Cradle Products for charging |
|
GUN Handle Convenient to use a product such as a gun / Charging Independently |
|
Adaptor Support 5V/3A |
|
Host USB Cable USB Type-C to Type-C / Host device connection |
|
USB Cable USB Type-C / 1.5m |
|
Double-Sided Tape Using for fixing host device on the top |
|
Hand Strap |
| Products Model | ATID ATS200 2D barcode scanner, UHF RFID reader, Bluetooth, Pistol Grip Handle and Cradle |
|---|---|
| Barcode scanner | 2D scanner |
| RFID reader | UHF RFID |
| Device type | Pistol grip |
| Manufacturer | ATID |
